Flanged Compressed Air Filters - TRF* Series

Request a Quote

View All: http://airdryers-en.com/4-3-trf-series-flanged-filters.html

COMPRESSED AIR FILTERS Compressed air filters and elements with air flow rate from 23 to 320m³/min

The flanged compressed air filters and elements provide high-efficiency filtration for flow rates from 23 to 320 m³/min. Engineered for high contaminant-holding capacity, strong corrosion resistance, excellent temperature tolerance, and long service life, these filters ensure reliable removal of impurities from compressed air systems.

The flanged filter adopts a multi-layer construction, combining borosilicate, glass fiber, activated carbon fiber, non-woven fabric, and stainless steel mesh. This advanced multi-stage filtration guarantees the delivery of oil-free, contaminant-free compressed air, supporting superior air quality across industrial applications that demand large flow capacities with consistent performance.

General Information

"*" stands for filtration grade

Grade C filtration: solid 3μm, oil content 3ppm

Grade T filtration: solid 1μm, oil content 1ppm

Grade A filtration: solid 0.01μm, oil content 0.01ppm

Grade X filtration: solid 0.01μm, oil content 0.003ppm

Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm

Grade F high efficiency dust removal: 0.1μm

Grade FF super high efficiency dust removal: 0.01μm

Technical Data

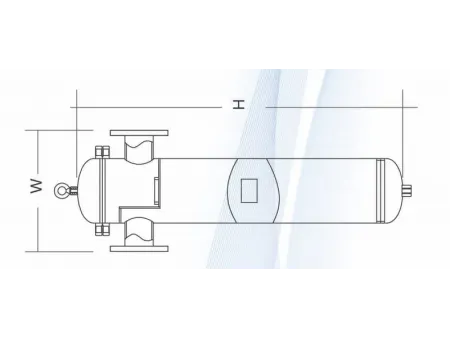

Filter model	Air flow rate (m³/min)	Connection size	Filter element model	Quantity of filter elements	W (mm)	H (mm)	Barrel diameter (mm)
TRF*-20	23	DN65	E*-44	1	353	950	133
TRF*-25	27	DN80	E*-48	1	353	1110	133
TRF*-30	35	DN80	61040*	2	465	1009	245
TRF*-40	45	DN100	61044*	2	465	1159	245
TRF*-50	55	DN100	61044*	3	500	1194	273
TRF*-60	65	DN125	61044*	3	500	1194	273
TRF*-80	85	DN125	61044*	4	565	1290	325
TRF*-100	110	DN150	61044*	5	617	1305	377
TRF*-120	130	DN150	61044*	6	726	1353	426
TRF*-150	160	DN200	61044*	8	780	1419	500
TRF*-200	220	DN200	61048*	9	800	1560	500
TRF*-250	260	DN250	61048*	12	860	1570	560
TRF*-300	320	DN250	61048*	14	950	1730	650
