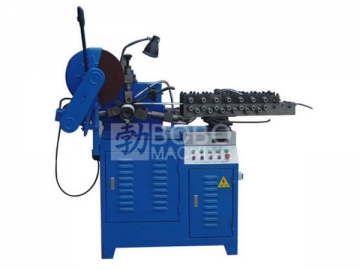

Corrugated Pipe Forming Machine
The BF-135/150 corrugated pipe forming machine remains our most popular model for normal post-tension pipe and pres-stressed pipe fabrication. The maximum diameter ranges as high as 150mm. Fitted with an inverter control system, the machine operating speed is fully adjustable. The automatic lubrication system is loaded with standard configuration to optimize cooling work during the formation of pipes. BOBO supplies a minimum of five sets of moulds with the machine, free of charge. Spare parts including forming roller, gear, shaft, and more, will be provided if needed.
Technical Specifications
Diameter range: 35~150mm
Suitable material: galvanized steel strip, 0.2~0.4~0.6~1.2mm, 36~78mm wide
Pitch of spiral: 28~64mm
Seam type: double lock seam
Strip feeding speed: 0- 3 m/min, adjustable by inverter
Dimension: 1400 x 1800 x 1350mm
Total weight: 780kg
As a major corrugated pipe forming machine manufacturer and supplier in China, we also provide waste paper baler, car wheel rim machine, punch press machine, and more.
