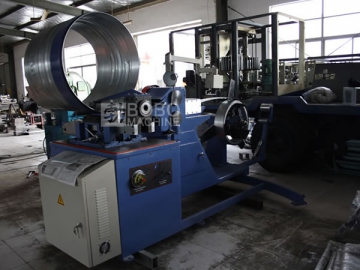

Corrugated Pipe Making Machine
The BPT-1500 corrugated pipe making machine is a modified version of the ventilation duct forming machine. Now complete with a new and more stable design, the wall can be as thick as 2mm and the diameter can expand up to 2000mm, highly ideal for post-tension concrete work. Equipped with the corrugation forming roller, the machine can form up to two lines of reinforcement rib and ensure added rigidity on the finished corrugated pipe. Also known as the Void former, the corrugated pipe making machine is widely used for cement concrete work. BOBO provides a processed sample upon request for inspection and tension-testing, free of charge. One year's warranty on parts comes with the purchase of the machine.
Technical Specifications
Diameter of round tubes: 100mm ~ 1500mm.
Max. tube length: 8000mm.
Thickness of strip: 0.4 ~ 1.2mm
Width of strip: 137 mm
Strip speed: 1~35m/min, adjustable
Dimension: 2600 x 1900 x 1800mm
Weight: 2500kg
As a China corrugated pipe making machine manufacturer, our company also supplies spiral duct machine, waste paper baler, filter core making machine, car wheel rim machine, and much more.
