20° Dies, H=86mm, Amada Press Brake Tooling

20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
20° Dies, H=86mm, Amada Press Brake Tooling
Request a Quote

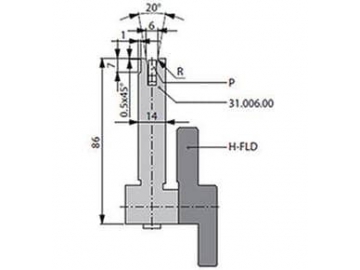

F 31.006 (F=350KN/m Max)
Radius 2mm
Length Weight
Width 14mm
Material Thickness 0.5mm-1.25mm
Standard Length100mm 1.71KG
Standard Length500mm 8.55KG
F 31.007 (F=500KN/m Max)
Radius 1mm
Length Weight
Width 19mm
Material Thickness 0.5mm-1.5mm
Standard Length100mm 1.87KG
Standard Length500mm 9.35KG

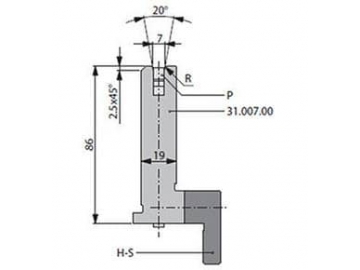

F 31.007.20 (F=500KN/m Max)
Radius 2.5mm
Length Weight
Width 19mm
Material Thickness 0.5mm-1.5mm
Standard Length100mm 1.86KG
Standard Length500mm 9.3KG
F 31.012 (F=500KN/m Max)
Radius 1.5mm
Length Weight
Width 28mm
Material Thickness 0.7mm-3.0mm
Standard Length100mm 2.39KG
Standard Length500mm 11.95KG
F 31.013(F=500KN/m Max)
Radius 3mm
Length Weight
Width 28mm
Material Thickness 0.7mm-3.0mm
Standard Length100mm 2.40KG
Standard Length500mm 12.00KG
