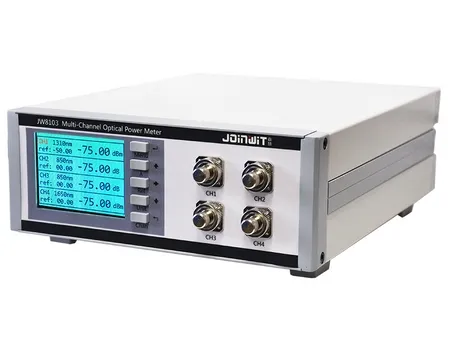

JW8103A High-Speed Optical Power Meter

JW8103A

Benchtop optical power meter for measuring intensity of optical signals

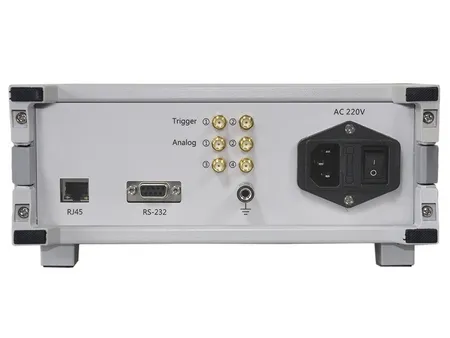

This optical power meter is equipped with RS232-C and RJ45 communication interfaces for seamless connectivity with PCs. The communication interface supports both simplified and standard commands, enabling faster communication speeds with PCs and enhanced reliability with PCBs. It is customizable for secondary development, offering a detachable external optical power meter probe that meets the needs of optical device manufacturers, research institutions, and universities.

Features

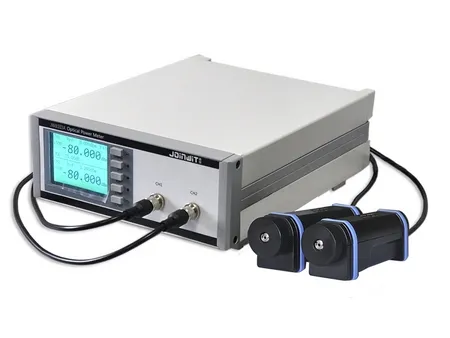

Multi-functional and flexible configuration (detachable probe for standalone use, connection to the meter, or built-in detector use)

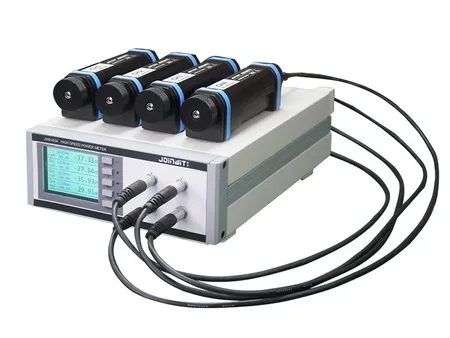

Configurable with 1 to 4 channels (more channels available with the JW8105 model)
Wide dynamic testing range of 10 to -80dBm
Adjustable sampling rate with a maximum of 10 kS/s
Three trigger storage modes with customizable trigger edges
Large-capacity storage with up to 65,536 data points per channel
Analog voltage output functionality
Supports simultaneous communication via RJ45 and RS232
Capable of PDL (Polarization-Dependent Loss) measurement
User-configurable wavelength display, supporting up to 32 wavelengths
Multiple connector options, including bare fiber adapters, 1.25mm/2.5mm universal connectors, and FC/LC/SC interfaces
Internal temperature control circuitry ensures detector stability for higher testing accuracy

Specifications

Detector Type	InGaAs/Si
Detector Size	Ø2.0mm
Wavelength Measurement Range	850 to 1700nm, 400 to 1100nm
Power Measurement Range	A: 10 to -80dBm C: 25 to -60dBm
Linearity	±0.04dB (A: 10 to -50dBm) (C: 25 to -35dBm) ±0.08dB (A: -50 to -70dBm) (C: -35 to -55dBm)
Uncertainty	±3%
Channel Uncertainty	0.04dB
Measurement Unit	dBm/Watt
Display Resolution	0.01/0.001dB
Operating Temperature	5 to 40℃
Storage Temperature	25 to 70℃
Dimensions	2U×235×380mm
Weight	< 5kg
Power Supply	AC 220V 50Hz
Analog Voltage	0 to 2.5V
