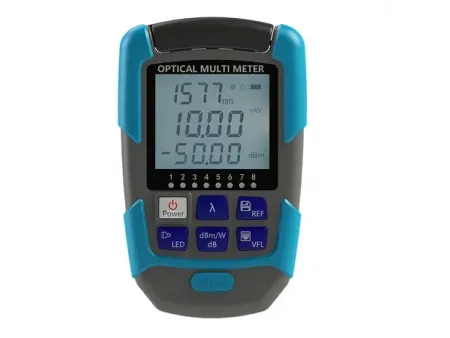

BUO350T/C Optical Power Meter

BUO350T/C Optical Power Meter
BUO350T/C Optical Power Meter
Request a Quote
  • FC, SC, ST adapters and 2 .5mm UPP
  • Energy save mode
  • Built in VFL (optional)
  • Reference value storage
  • Power autonomy of 100 hours
  • 850/1300/1310/1490/1550/1625nm
  • One-year warranty and Three-year recommended calibration interval
Standard
  • Carrying bag
  • Manual
  • Calibration certificate
  • Packing box
Optional
  • FC adapter
  • SC adapter
  • SC adapter
  • FC male to LC female adapter
  • AC/DC adapter
Specifications
Model BOU350T BOU350C
Display Range 1310/1490/1550/1625: 10 ~ -70dBm 1310/1490/1550/1625: 26 ~ -50dBm
  850/1300: 10 ~ -60dBm 850/1300: 26 ~ -40dBm
Accuracy * ±0.2 dB
Calibrated Wavelengths 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Resolution 0 .01dB
OPM Connector FC & 2 .5mm UPP (option: SC, ST)
Build in VFL(Optional) 1mW or 10mW or customize
REF Yes
Auto Power Of No operation in 10 minutes (can be canceled), Low battery energy
Battery Charge Yes
Battery Life Above 100 hours
Power Supply AA * 2 batteries or AC/DC power supply adapter

* at 20 3, CW, with FC connector, - 10dBm

General Specifications
Size(H*W*D) 160mm * 75mm * 32mm
Weight About 180g
Storage Temperature -20 -- 60, < 90%RH
Operating Temperature - 10 -- 50, < 90%RH
Ordering Information

Example: BOU350T, BOU350C-V01
