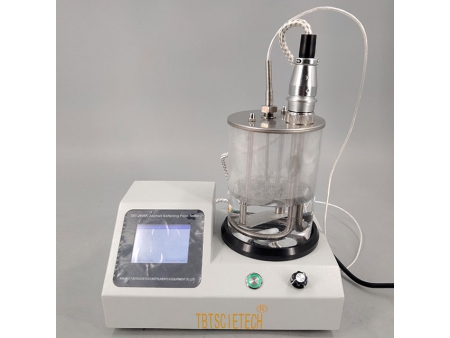

TBT-2806F Softening Point Apparatus (Ring and Ball Softening)

TBT-2806F softening point apparatus is made in accordance with Standard Test Method for Softening Point of Petroleum Asphalt, also accords to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

Our softening point tester is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

Technical Parameters
Power supply 220VAC 50HZ
Measurement range 32 ℃~160 ℃ glycerin (softening point > 80 ℃) 5 ℃~80 ℃ distilled water(softening point ≤80 ℃)
Stirrer Stirring speed can be adjusted continuously
Heating power 600 W
Beaker cubage 800ml
Heating rate It will be adjusted to (5.0±0.5) ℃/ min automatically after 3minutes
Maximum power consumption 850 W
Test sample 2 samples
Dimension 270mm×200mm×330mm(L*W*H)
Power supply 220VAC 50HZ

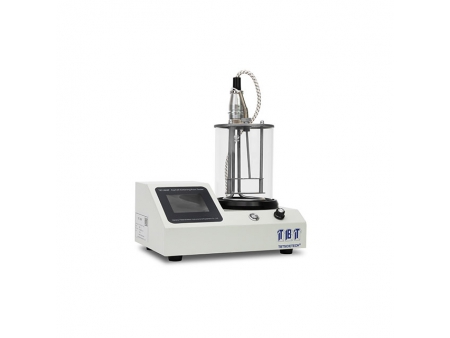

TBTDF-12 Bitumen Automatic Softening Point Apparatus (Ring and Ball)

TBTDF-12 automatic softening point apparatus is used to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalt products. It’s widely used for asphalt manufacturing companies, construction companies, colleges & universities, scientific research institutes, etc.

Technical Specification
Test medium Water or glycerin (the instrument can automatically distinguish)
Temperature measurement range -50.0℃-125.0℃
Test temperature range 5℃-125℃
Temperature control rate 5℃±0.5℃/min
Test time 00 minutes 00 seconds-99 min 59 seconds
Temperature control method Automatic control, magnetic stirring
Steel ball weight:
Steel ball diameter
3.50±0.05g
9.53mm
Beaker 1000ml
Heater 700W
TBT-2806A Softening Point Apparatus

TBT-2806A softening point apparatus is used to determine the softening point of bituminous materials such as petroleum asphalts, coal pitch, and liquid petroleum asphalt. The softening point apparatus is an ideal choice for asphalt manufacturing companies, highway and bridge construction companies, labs, universities, etc.

The apparatus can also be used for the determination of the softening point of resin products.

Technical Parameters
Ring Height is 6.4mm; upper aperture is 19.8mm; lower aperture is 15.9mm
Ball Diameter is 9.5mm; weight is (3.50±0.05)g
Ball locating ring Inner ring is 23.0mm; center is 9.55mm
Test method 2 samples, parallel test
Support plate 25.4mm from bottom
Vessel 1000ml beaker
Thermometer Mercury-in-glass thermometer, range from 30℃ to 180℃; division is 0.5℃
Net weight 1.5kg
Automatic Softening Point Apparatus
Model: TBT-2806G
Technical Parameters
Temperature resolution:  0.1℃
Heating rate:  automatic adjustment within 5.0±0.5℃/min in three minutes
Heating power:  600W
Stirrer:  electromagnetic stirring speed can be adjusted continuously, ranging from 0 to 300r/min.
Cubage of beaker:  1000ml
Test result:  LCD screen shows results with printer to print
Computer communication interface:  RS-232C communication interface
working temperature:  15℃~35℃
Relative humidity:  ≤85%
Total power consumption:  ≤700W
Dimension:  400mm×300mm×250mm
Measurement range:  the heating medium choice of water or glycerin depends on the softening point. (1) Heating medium: distilled water 20℃~90℃ (softening point ≦80℃)(2) Heating medium: glycerin 70℃~160℃ (softening point >80℃)
