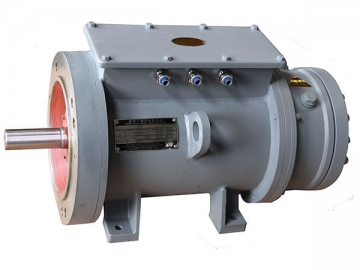

YZ-H Series Marine Use Three Phase Induction Motors For Hoisting(Single And Double)

Introduction

The YZ-H series of single/double speed three-phase induction motors are used in hoisting machinery and meet GB755 and GB/T7060 standards for rotating electrical machines in ships. The hoisting induction motors feature excellent performance, low noise, and reliable operation for short-term electrical dragging on boats such as in anchoring machines, cranes, winch machines and winches. The single/double speed motors also meet the following standards and specifications:
IEC60034   Rotary motor
IEC60068   Testing process of basic environment
IEC60072   Mounting dimensions and power of rotary motor
IEC60092   Marine electrical devices (equipment)
Rules for the construction of sea-going steel ships

Working Conditions:
Ambient temperature：-25~ 45℃
Shock, Vibration：Exist
Periodical transverse shaking：±22.5°
Ramp：15°
Altitude: 0m
Longitudinal ramp：10°
Relative humidity of air：≤ 95%
Frozen dew, salt dew, oil dew：Exist

Main Technical Parameters

Main Technical Data of Single Speed Motors:

Type	Duty type S2-min	Rated power (kW)		Rated speedr/min		Rated current (A)		DC. Brake
Type	Duty type S2-min	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	Voltage (V)	Current A	Brake torque N · m
YZ112S-4-H	30	1.5	1.8	1360	1632	4.3	4.5	110	1.37	33
YZ112M-4-H	30	2.2	2.5	1360	1630	6.0	5.92	110	1.37	33
YZ112L-4-H	30	3.7	4	1360	1630	9.6	8.98	110	1.37	33
YZ112S-6-H	30	1.1	1.2	890	1068	3.5	3.31	110	1.37	33
YZ112M-6-H	30	1.5	1.8	890	1068	4.65	4.82	110	1.37	33
YZ112L-6-H	30	2.2	2.5	890	1068	6.6	6.51	110	1.37	33
YZ132M1-4-H	30	5.5	6.3	1356	1670	13.4	13.3	110	1.56	72
YZ132M2-4-H	30	7.5	8.5	1360	1690	18.5	17.88	110	1.56	72
YZ132S-6-H	30	3.7	4	940	1130	10.5	9.85	110	1.56	72
YZ132M-6-H	30	5.5	6.3	940	1130	15.3	15.10	110	1.56	72
YZ160S-6-H	30	7.5	8.5	940	1140	19.73	19.31	110	1.61	160
YZ160L-6-H	30	11	13	930	1130	26.8	27.34	110	1.61	160
YZ180L-6-H	30	15	18.5	960	1152	36	38.42	110	2.24	203
YZ200M-6-H	30	18.5	22	950	1140	43.9	45.13	110	2.23	260
YZ225S-6-H	30	22	25	950	1140	50.97	50.03	110	2.16	399

Main Technical Data of double speed motors:

Type	Duty type S2-min	Rated power (kW)		Rated speed r/min		Rated current (A)		DC. Brake
Type	Duty type S2-min	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	Voltage (V)	Current A	Brake torqueN · m
YZ132M-4/12-H	30/10	3/1.1	3.5/1.2	1360/430	1660/530	8.3/7.6	8.4/8.6	110	1.56	72
YZ132L-4/12-H	30/10	4/1.5	4.5/1.7	1400/430	1700/530	10.3/9.1	10/8.9	110	1.56	72
YZ160L-4/12-H	30/10	6.3/2.2	7.5/2.5	1394/426	1690/530	15.4/11.9	16.2/11.7	110	1.61	160
YZ180L-4/12-H	30/10	8.5/3.5	10/4.0	1400/438	1690/520	19/18	20.5/17.7	110	2.24	203
YZ180L-4/16-H	30/15	11/3.0	13/3.5	1424/328	1742/380	24/16	26.8/16.7	110	2.24	203
YZ200M-4/16-H	30/15	15/4.0	17/4.5	1420/340	1740/400	32.8/24.1	33.2/23.4	110	2.23	260
YZ200L-4/16-H	30/15	18.5/5.5	22/6.3	1420/340	1740/410	40.4/32.6	42.4/32.3	110	2.23	260

Overall and Mounting Dimensions

Frame Size	Mounting Dimensions																Overall Dimensions							Weight (kg)
Frame Size	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	n	AB	AD	BB	HA	HD	L1	L2	L1	L2
112S	190	114	70	28	60	8	24	112	12	265	230	300	0	15	4	4	235	215	152	12	282	315	440	51	73
112M	190	140	70	28	60	8	24	112	12	265	230	300	0	15	4	4	235	215	178			340	465	54	74
112L	190	159	70	28	60	8	24	112	12	265	230	300	0	15	4	4	235	215	197			360	490	60	86
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	15	4	4	259	225	207	15	325	425	545	63	99
132M	216	178	89	38	80	10	33	132	12	265	230	300	0	15	4	4	259	225	218			455	590	85	122
132L	216	203	89	38	80	10	33	132	12	265	230	300	0	15	4	4	259	225	243			485	615	86	122
160S	254	178	108	42	110	12	37	160	15	300	250	350	0	19	5	4	303	258	226	20	370	510	650	120	145
160L	254	254	108	42	110	12	37	160	15	300	250	350	0	19	5	4	303	258	302		370	590	740	150	175
180L	279	279	121	48	110	14	42.5	180	15	350	300	400	0	19	5	4	341	275	342		450	660	810	220	260
200M	318	267	133	48	110	14	42.5	200	19	400	350	450	0	19	5	8	385	300	337		515	660	810	240	330
200L	318	305	133	48	110	14	42.5	200	19	400	350	450	0	19	5	8	385	300	337		515	706	846	295	380
225S	356	286	149	55	110	16	49	225	19	500	450	550	0	19	5	8	435	325	386		568	730	890	325	426

Note: All technical data is for reference only and may change depending on the specifications of your order. Please contact us with any questions.
