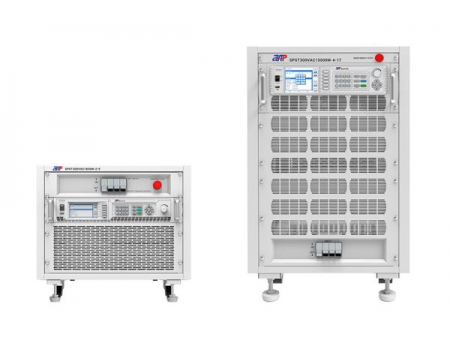

SPST Series Three Phase Programmable AC Power Source

SPST Series Three Phase Programmable AC Power Source
Request a Quote

Linked 3-Phase AC Power Supply System

  • Voltage: 150V/300V/600V
  • Power: 1800W-15kW
  • Size: 9U, 17U
  • Interface: LAN, USB, RS-232, RS-485, GPIB
  • Specifications
  • Related Download
Request a quote
Description

SPST series three phase programmable AC power source features high power density and single/three phase output, power ranging from 1800W to 15kW. Both touch-screen and button user interfaces are available, which is convenient for operating.

Advantages
  • Color touch screen for convenient controlling and setting, accurate and high-res display;
  • AC, DC and AC DC modes, AC DC mode is able for simulating DC voltage offset;
  • Able for simulating any waveforms, supporting CSV file waveform importing;
  • USB interface in standard configuration, able for file importing/exporting and data saving;
  • Remote SENSE compensation function to promote measuring accuracy;
  • USB/LAN/RS485/RS232/GPIB interfaces.
Applications
  • New energy;
  • Military and aerospace;
  • Electric and electronic;
  • Testing institute;
  • Lab test;
  • Wireless charging;
  • Power source module.
Specifications
Model Voltage Current Power Standard Communication
Interface
Frequency Range Size
SPST300VAC1800W-2-9 150V/300V 5.6A/2.8A 1800W RS232/RS485/USB 15~1000Hz 9U
SPST300VAC3000W-2-9 150V/300V 9.2A/4.6A 3000W RS232/RS485/USB 15~1000Hz 9U
SPST300VAC4500W-2-9 150V/300V 13.8A/6.9A 4500W RS232/RS485/USB 15~1000Hz 9U
SPST300VAC6000W-3-17 150V/300V 16A/8A 6000W RS232/RS485/USB/LAN 15~1000Hz 17U
SPST300VAC9000W-4-17 150V/300V 27.6A/13.8A 9000W RS232/RS485/USB/LAN 15~1000Hz 17U
SPST300VAC12000W-4-17 150V/300V 32A/16A 12000W RS232/RS485/USB/LAN 15~1000Hz 17U
SPST300VAC15000W-4-17 150V/300V 46A/23A 15000W RS232/RS485/USB/LAN 15~1000Hz 17U
