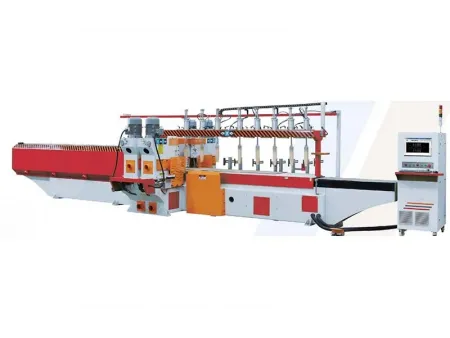

Double-Side Copy Shaping Machine

Double-Side Copy Shaping Machine
Double-Side Copy Shaping Machine
Double-Side Copy Shaping Machine
Request a Quote
Website:

//Woodworking Machinery

Linear copy shaper for double sided milling of solid wood components

Woodworking Machinery
  • Max. working length2000mm
  • Max. working width360mm
  • Spindle speed9000r/min
  • Cutting power1.5kW
Key Components
  • Beckhoff Control System (Germany)
  • Siemens Motor (Germany)
  • Rexroth Linear Guide Rail (Germany)
  • Intelligent Operation Interface
  • Delta Servo Drive (Taiwan)
  • Automatic Positioning System

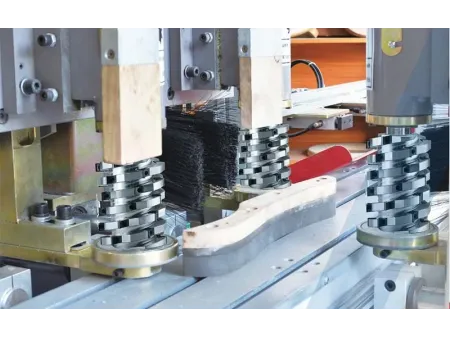

  • Heavy-Duty Spiral Cutterhead (Taiwan)
Sample Showcase
Specifications

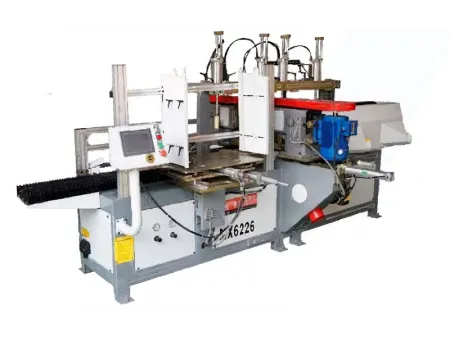

Mode MX6232 MX6226
Max. working length 2000mm 2000mm
Max. working width 360mm 360mm
Max. working thickness 150mm 150/200mm
Spindle diameter Ø35mm Ø35mm/Ø40mm
Diameter of backup wheel Ø100mm Ø100mm
Spindle speed 9000r/min 9000r/min
Spindle power 7.5kW×4pcs 5.5kW×2pcs;3kW×2pcs
Cutting power 1.5kW 1.5kW
Hydraulic motor power 1.5kW 1.5kW
Work table size 2000×300mm 2000×300mm
Working air pressure 0.6-0.8MPa 0.6-0.8MPa
Hydraulic system pressure 8MPa 8MPa
Dust outlet diameter Ø100mm×2pcs Ø100mm×2pcs
Machine dimensions 400×220×210cm 400×220×210cm
Machine weight 3000kg 2500kg
Related Manufacturies
CNC Wall Panel Edge Slotting Machine (Double Side)
CNC Wall Panel Edge Slotting Machine (Double Side)

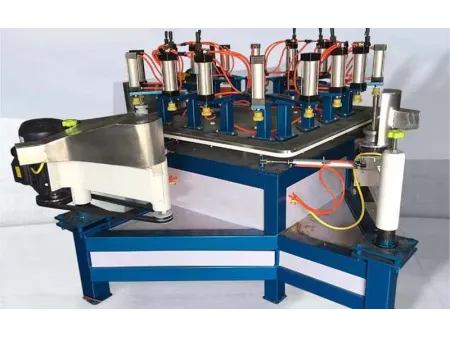

Multifunctional Rotary Copy Shaper and Sander
Multifunctional Rotary Copy Shaper and Sander

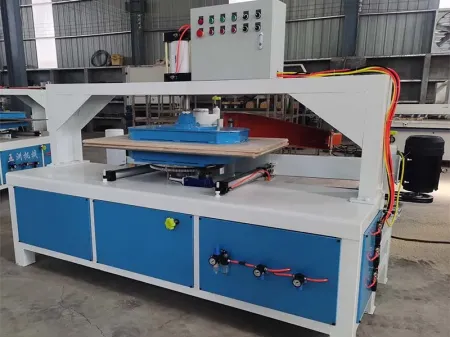

Wood Table Profiling Copy Shaper and Sander
Wood Table Profiling Copy Shaper and Sander

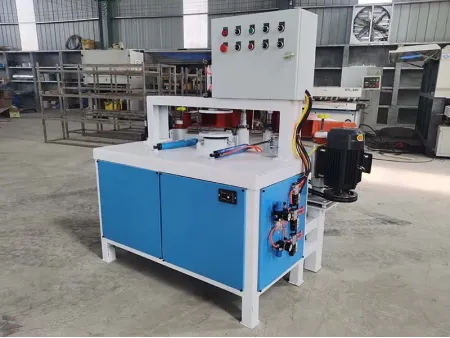

Wood Chair Seat Profiling Copy Shaper and Sander
