High-Gain Rubber Type Coupling
Request a Quote

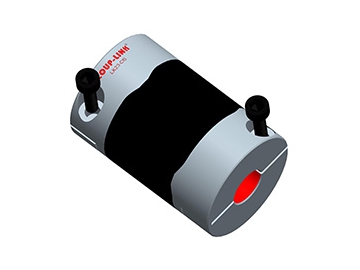

The high-gain rubber type coupling features an integrated construction with rubber molded between two aluminum hubs on both ends. This makes the stabilization time greatly reduced. This coupling is ideal for use in actuators and indexing tables. Different shaft fastening methods are available, including clamp type and keyway type. Others can be offered upon request.
Features- The high-gain rubber type coupling is a one-piece coupling with a fast response speed.
- The rubber elastomer between the hubs allows for high vibration absorption capacity.
- This coupling can transmit higher torque than disk coupling and beam coupling. In addition, the uneven speed and torque transmission caused by misalignment can be reduced.
- Identical clockwise and counter-clockwise rotational characteristics.
- It's featured with excellent electrical insulation and reduced noise during working.
Note: please let us know the model and the φd1φd2 of product you need.
Model | φd1φd2 Max. Bore Diameter | φD | L | F | L1 | M | Tightening Torque ( N.M ) |
LK23-C15 | 6 | 15 | 23 | 2.1 | 6.4 | M1.6 | 0.25 |
LK23-C20 | 8 | 20 | 26 | 2.5 | 7.6 | M2.0 | 0.5 |
LK23-C25 | 12 | 25 | 32 | 3.0 | 9.6 | M2.5 | 1.0 |
LK23-C30 | 15 | 30 | 36 | 3.5 | 10.9 | M3 | 1.5 |
LK23-C35 | 16 | 35 | 38 | 3.75 | 11.8 | M3 | 1.5 |
LK23-C40 | 20 | 40 | 48 | 5.5 | 17 | M5 | 5.0 |
LK23-C45 | 22 | 45 | 50 | 5.5 | 15 | M5 | 5.0 |
Model | Rated Torque ( N.m ) | Max. Torque ( N.m ) | Max. Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Max. Angular Misalignment ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
LK23-C15 | 1.1 | 2.2 | 42000 | 2.3×10-7 | 43 | 1.5 | ±0.2 | 8 |
LK23-C20 | 2.1 | 4.2 | 33000 | 7.01×10-7 | 88 | 1.5 | ±0.2 | 14 |
LK23-C25 | 4.0 | 8.0 | 25000 | 2.5×10-6 | 170 | 1.5 | ±0.2 | 28 |
LK23-C30 | 6.3 | 13.6 | 21000 | 5.7×10-6 | 220 | 1.5 | ±0.3 | 45 |
LK23-C35 | 8.0 | 16 | 18000 | 9.9×10-6 | 390 | 1.5 | ±0.3 | 65 |
LK23-C40 | 13.5 | 27 | 16000 | 2.8×10-5 | 640 | 1.5 | ±0.3 | 98 |
LK23-C45 | 18 | 36 | 14000 | 4.4×10-5 | 1500 | 1.5 | ±0.3 | 136 |
