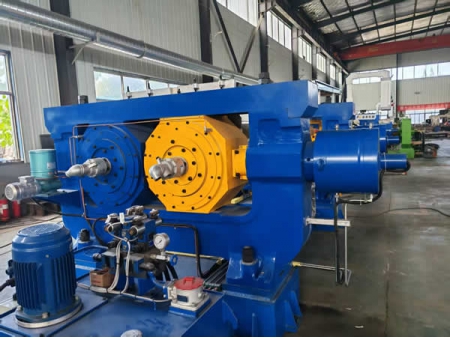

Rubber Mixing Mill (Bearing Type)
Request a Quote
Mixing Mill, Rubber Mixing Mill, Open Mixing Mill, Two Roll Mixing Mill, Rubber Machinery, Rubber Mixing Machine
The bearing type rubber mixing mill is utilized by rubber processors for plasticizing and mixing rubber and plastic materials.
Technical Parameters
| Mode | ||||
| Roller diameter (mm) | Φ550 | Φ660 | ||
| Working length of the roller(mm) | 1500 | 2130 | ||
| Working linear speed of front roll (m/min) | 27.94 | 28.1 | ||
| Friction ratio of front and rear roll (m/min) | 1 ∶ 1.22 | 1 ∶ 1.24 | ||
| Max gap(mm) | 15 | 15 | ||
| Capacity per batch (kg) | 50-60 | 165 | ||
| Driving motor power ( Kw ) | 110 | 245 | ||
| Overall dimension (mm) | L | 5900 | 7465 | |
| W | 2680 | 3662 | ||
| H | 2080 | 2750 | ||
| Weight (kg) | 27000 | 6500 | ||
| Note | Bearing | |||
