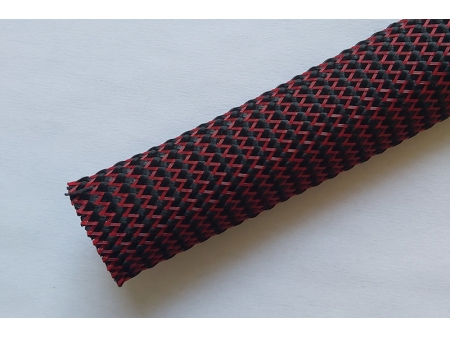

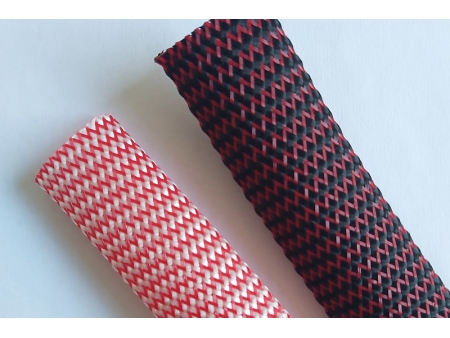

Noise Reduction Braided Sleeving
Request a Quote
- Reduces noise from electrical wires, cables, and hoses
- Repellent to petroleum, engine chemicals, and hydraulic fluids
- Resistant to abrasion
- Ultra lightweight
- Cuts easily with scissors or hot knife
- RoHS, halogen Free
Now
The noise reduction sleeve is made from a tight mixture of monofilament and multifilament PET yarns to provide a durable sleeve that protects wires, cables and harness from friction that can seriously affect sharp elements and functionality. The tight braided design prevents heat and moisture from being trapped inside and reduces noise from wires, tubes and hoses.
| Model | Standard size | Expandability (mm) | Packing (M/R) | |
|---|---|---|---|---|
| mm | inch | |||
| 3.0 | 1/8 | 3-4.5 | 1000 | |
| 6.0 | 1/4 | 6-9 | 500 | |
| 8.0 | 5/16 | 8-12 | 500 | |
| 10.0 | 3/8 | 10-15 | 500 | |
| 12.0 | 1/2 | 12-18 | 350 | |
| 16.0 | 5/8 | 16-24 | 350 | |
| 19.0 | 3/4 | 19-28 | 250 | |
| 25.0 | 1 | 25-37 | 250 | |
| 30.0 | 1 1/8 | 30-45 | 250 | |
| 35 | 1 3/8 | 35-52 | 100 | |
| 40.0 | 1 9/16 | 40-60 | 100 | |
| 45.0 | 1 3/4 | 45-67 | 100 | |
| 50.0 | 2 | 50-75 | 100 | |
| 60.0 | 2 3/8 | 60-90 | 50 | |
| 70.0 | 2 3/4 | 70-105 | 50 | |
