For finishing treatment of nonwoven products

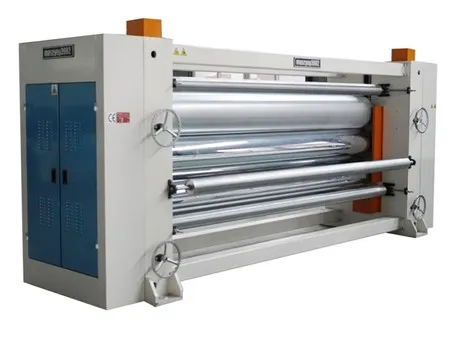

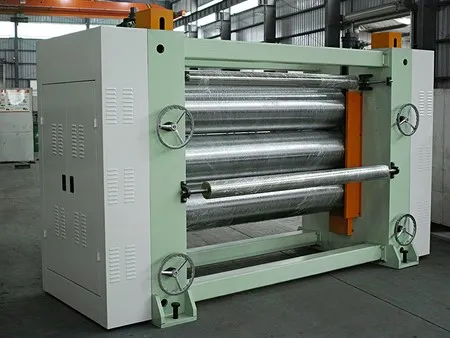

Heating calender machine is primarily used for thermal treatment of nonwoven products. By applying a certain temperature and pressure, it can alter the thickness, appearance, and certain properties of nonwoven fabric products.

Category: Two rollers, Three rollers
Working width: 2000mm~7000mm
Linear speed: 1~25m/min
Applications

Heating calender machine is an integral part of the thermal bonding production process and is used to directly produce low GSM nonwoven products such as garment linings, composite substrates, and filtering materials, etc.

Specifications
Category Two rollers Three rollers
Working width 2000mm~7000mm
Linear speed 1~25m/min
Surface temperature ≤230℃
Temperature variation ≤ /-2℃
Heating method Hermetic thermal oil (Electrical heating)
External thermal oil
Features
  • Variable frequency control enables adjustable speed.
  • Each heating roller can be independently adjusted for heating, with precise automatic temperature control.
  • With high precision and hardness roller surface, rollers are heat-treated for durability and deformation resistance.
  • Hermetic thermal oil or separate circulating thermal oil system can adapt to different types of production.
  • Overload protection, protective cover, emergency stop, and other multiple safety protections are equipped.
