Sanding Machine
Our sanding machine is an essential piece of equipment in woodworking, tailored for finishing high-quality floors, doors, and panel furniture. It boosts the efficiency of your finishing process and enables custom surface treatments, making your products more competitive. Our sanding machine is designed for practicality and precision, ensuring every piece of woodwork receives the best possible finish. By integrating our sanding machine into your production process, you can achieve a superior finish that resonates with quality and finesse, setting your products apart in the industry.
Ideal for sanding after applying primer, the wide belt sander is a key tool in the woodworking and manufacturing industries. It is especially suitable for panel-type furniture, solid wood composite flooring, flat doors, crafts, bamboo and wood curtains, and more. These sanding machines are renowned for their efficiency and precision, allowing for uniform sanding over large areas; a crucial factor in achieving a high-quality finish. Their versatility and effectiveness in handling a variety of materials make them indispensable in the production process.
- The sanding machine's significant weight and heat-treated structure ensure high strength and thermal stability. Main components are precision-made, featuring high-quality parts from renowned brands in the USA, Japan, and Taiwan for enhanced precision, durability, and extended service life.
- Equipped with an imported 20-40 degree natural wear-resistant rubber roller. The sand belt speed is variably adjustable to suit different coating types, effectively preventing cross-grain whitening.
- Features a hold-down shoe and pressure roller structure, allowing for processing of larger, boards with irregular shapes.
- Specially designed to remove sanding marks, significantly improving the surface quality post-painting.
| Model | Working width | Working height | Min. working length | Feeding speed | Feeding power | Lifting power | Brush power |
| 600mm | 2-80mm | 300mm | 5-20m/min | 0.75kW | 0.37kW | 0.37kW | |
| 900mm | |||||||
| 1300mm | 1.5kW |
| Model | Air outlet diameter | Air pressure | Polish wheel power | Dimensions | Total power | Weight |
| 1000mm | 3-6kg | 1.5kW | 1600×1480×1750mm | 9.8kW | 900kg | |
| 1600×1750×1750mm | 12kW | 1100kg | ||||
| 1600×2150×1750mm | 16kW | 1500kg |
- Internal structure of sander

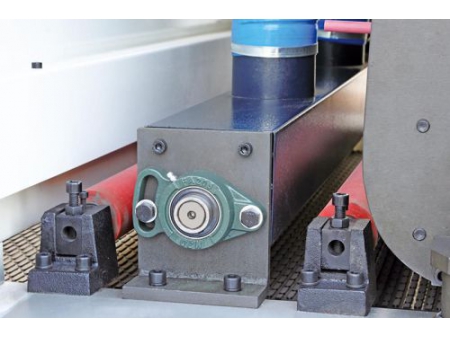

- Built-in cleaning brush roller

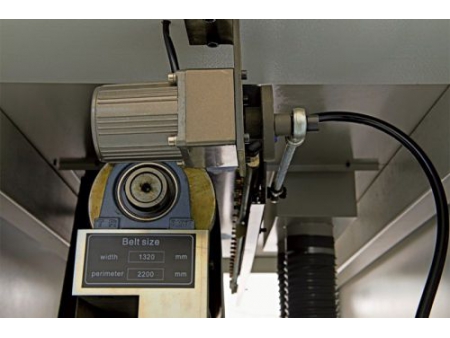

- Motor-controlled sanding frame
