Double Cylinder Carding Machine Manufacturer

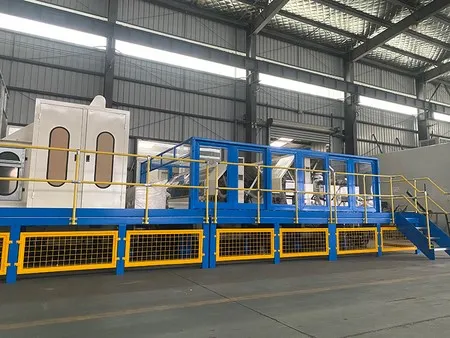

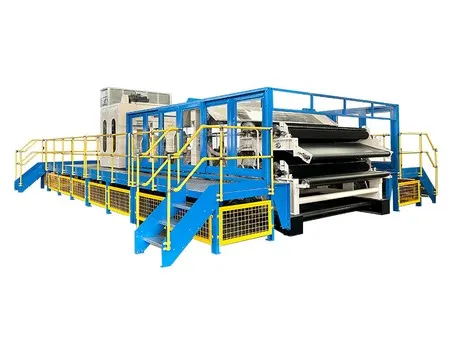

Double Cylinder Carding Machine

Request a Quote

View All: http://snk-nonwovenmachine.com/1-2-4-double-cylinder-carding-machine.html

Carding system for converting fiber batt into fiber web

In the nonwoven manufacturing process, double cylinder carding machine is used to convert fiber raw materials into a fiber web. Fiber mass is progressively carded into individual fibers through various carding sections on the carding machine, and then collected to form a fiber web. Double cylinder carding machines performs exceptionally well in carding low denier and ultra-fine fibers.

Specifications

Working width	1550mm	1850mm	2000mm	2300mm	2500mm
Diameter of cylinder	Chest cylinder: 850mm
	Main cylinder: 1230mm
Diameter of doffer	492mm
Output speed	Ordinary: ≤50m/min
	High Speed: 60-80m/min
Capacity	200-600kg/h (varying with fiber specification)

Functions

Double cylinder carding machine is applicable to various nonwoven production processes, like needle punching, thermal bonding, chemical bonding, etc.
The carding system can process a variety of fibers, such as polyester fibers, viscose fibers, nylon fibers, polypropylene fibers, jute fibers, glass fibers, carbon fibers, etc.

Features

Double cylinder carding machine consists of a chest roller, main roller, double doffer, four random rollers.
The carding machine is equipped with variable frequency control for speed adjustment, making it suitable for carding various fibers and producing different products.
Exquisite mechanical craftsmanship limits the radial runout to within 0.02 mm, resulting in higher uniformity of the fiber web.
The circulating suction device and enclosed housing help in reducing noise and fiber flocks.
