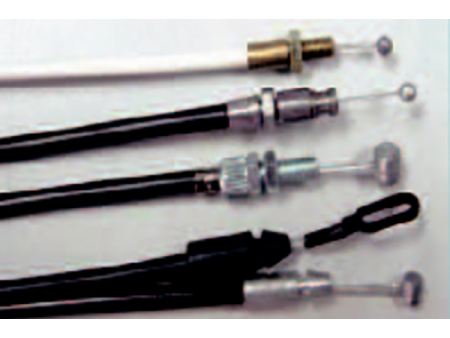

Control Cable
Request a Quote
Application
These control Cables are used in automotive components such as brakes, gears, chokes, etc.
Characteristic
1. Excellent straightness and flexibility.
2. Small diameter tolerance.
3. Production is conducted as per DIN EN as well as customized requirements.
Product Structures
- 6x7-WSC
- 1x19
- 6x19-WSC
| 1×19 | ||||
| Nominal Diam(mm) | Approximate Weight | Nominal Tensile Strength (Mpa) | ||
| 1770 | 1870 | 1960 | ||
| mm | kg/100m | Min. Breaking Load | ||
| (KN) | ||||
| 1.0 | 0.49 | -- | -- | 1.06 |
| 1.2 | 0.70 | -- | -- | 1.52 |
| 1.4 | 0.96 | -- | -- | 2.08 |
| 1.5 | 1.10 | -- | -- | 2.39 |
| 1.6 | 1.25 | -- | 2.59 | -- |
| 1.8 | 1.59 | -- | 3.29 | -- |
| 2.0 | 1.96 | -- | 4.06 | -- |
| 2.5 | 3.07 | -- | 6.01 | -- |
| 2.8 | 3.84 | 7.53 | -- | -- |
| 3.0 | 4.41 | 8.63 | -- | -- |
| 3.5 | 4.99 | 11.74 | -- | -- |
| 6x19-WSC | ||||
| Nominal Diam(mm) | Approximate Weight | Nominal Tensile Strength (Mpa) | ||
| 1770 | 1870 | 1960 | ||
| mm | kg/100m | Min. Breaking Load | ||
| (KN) | ||||
| 1.2 | 0.67 | -- | -- | 1.35 |
| 1.4 | 0.87 | -- | -- | 1.76 |
| 1.5 | 1.13 | -- | -- | 2.29 |
| 1.6 | 1.39 | -- | -- | 2.81 |
| 1.8 | 1.67 | -- | -- | 3.39 |
| 2.0 | 2.73 | -- | -- | 5.45 |
| 2.5 | 3.34 | -- | 6.45 | -- |
| 2.8 | 3.77 | -- | 7.28 | |
| 3.0 | 5.37 | -- | 10.37 | -- |
| 3.5 | 6.70 | -- | 12.92 | -- |
| 4.0 | 8.69 | -- | 15.89 | -- |
| 4.5 | 9.73 | 17.19 | -- | -- |
| 5.0 | 10.83 | 19.79 | -- | -- |
| 5.5 | 12.68 | 23.19 | -- | -- |
| 6.0 | 15.37 | 28.11 | -- | -- |
