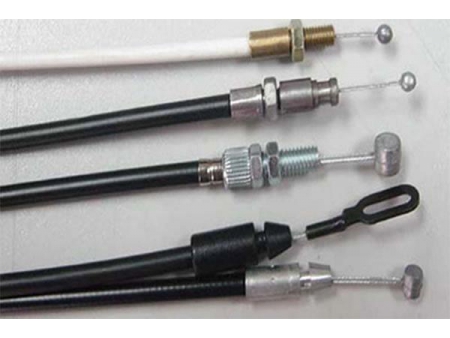

Stainless Steel Control Cable
Request a Quote
Application
These stainless steel control cable for control purposes are suitable for a wide range of applications from aircraft control to mechanical engineering projects.
Characteristic
1. Flexible and easy to use with a wide range of applications.
2. Manufactured as per DIN standards,(GB/T9944-2002) as well as customized requirements.
Product Structures
- 1×7
- 1×19
| 1×7, 1×19 | ||||
| Structure | Nominal Diameter (mm) | Diameter Tolerance (mm) | Min. Breaking Force (KN) | Approximate Weight (kg/100m) |
| 1×7 | 0.15 | 0/ 0.03 | 0.025 | 0.011 |
| 1×7 | 0.25 | 0/ 0.03 | 0.063 | 0.031 |
| 1×7 | 0.3 | 0/ 0.03 | 0.093 | 0.044 |
| 1×7 | 0.35 | 0/ 0.03 | 0.127 | 0.061 |
| 1×7 | 0.4 | 0/ 0.03 | 0.157 | 0.08 |
| 1×7 | 0.45 | 0/ 0.03 | 0.2 | 0.1 |
| 1×7 | 0.5 | 0/ 0.06 | 0.255 | 0.125 |
| 1×7 | 0.6 | 0/ 0.06 | 0.382 | 0.18 |
| 1×7 | 0.7 | 0/ 0.06 | 0.54 | 0.245 |
| 1×7 | 0.8 | 0/ 0.10 | 0.667 | 0.327 |
| 1×7 | 0.9 | 0/ 0.10 | 0.823 | 0.4 |
| 1×7 | 1 | 0/ 0.10 | 1 | 0.5 |
| 1×7 | 1.2 | 0/ 0.10 | 1.32 | 0.7 |
| 1×19 | 0.6 | 0/ 0.08 | 0.343 | 0.175 |
| 1×19 | 0.7 | 0/ 0.08 | 0.47 | 0.24 |
| 1×19 | 0.8 | 0/ 0.08 | 0.617 | 0.31 |
| 1×19 | 0.9 | 0/ 0.09 | 0.774 | 0.39 |
| 1×19 | 1 | 0/ 0.10 | 0.95 | 0.5 |
| 1×19 | 1.2 | 0/ 0.12 | 1.27 | 0.7 |
| 1×19 | 1.5 | 0/ 0.12 | 2.25 | 1.1 |
| 1×19 | 2 | 0/ 0.20 | 3.82 | 2 |
| 1×19 | 2.5 | 0/ 0.25 | 5.58 | 3.13 |
| 1×19 | 3 | 0/ 0.30 | 8.03 | 4.5 |
| 1×19 | 3.5 | 0/ 0.35 | 10.6 | 6.13 |
| 1×19 | 4 | 0/ 0.40 | 13.9 | 8.19 |
| 1×19 | 5 | 0/ 0.50 | 21 | 12.9 |
| 1×19 | 6 | 0/ 0.60 | 30.4 | 18.5 |
