FUJI vehicle elevator series maximizes the expertise we have gained from years of car elevator lifting technology. In response to the demands of the domestic market, we have developed both machine room car elevators (MR Elevator) and machine-roomless car elevators (MRL Elevator).

FUJI machine room car elevator adopts VVVF frequency conversion technology and a dedicated elevator system for transporting car elevators, with minimal floor height restrictions and ensures precise leveling to the millimeter. The innovative technology further reduces energy consumption by over 30%, providing comfort and low noise. Our vehicle elevators are widely used in parking lots, garages, underground parking lots, and other locations.

Features
  • A more intelligent signal management system enhances safety and user comfort.

  • Taking into account the driving habits of drivers and optimizing the design of control panels on both sides, allows for quick operation for drivers inside the car.

  • Enhanced safety positioning settings inside the car ensures the safety of both the elevator and the vehicle.

  • A unique circuit control and display system offers flexible responsiveness and enables users to stay informed about real-time conditions.

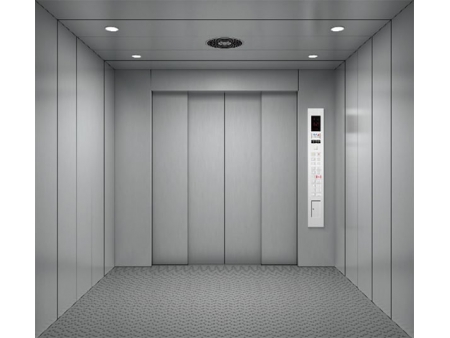

General Specifications of Our Elevator Cabins

HD-H01 Vehicle Elevator

  • Car wall: Painted steel
  • Ceiling: Painted steel
  • Lighting: Fluorescent lamp
  • Car door: Painted steel
  • Flooring: Checked steel plate

HD-H02 Vehicle Elevator

  • Car wall: Hairline stainless steel
  • Ceiling: Hairline stainless steel
  • Lighting: Fluorescent lamp
  • Car door: Hairline stainless steel
  • Flooring: Checked steel plate

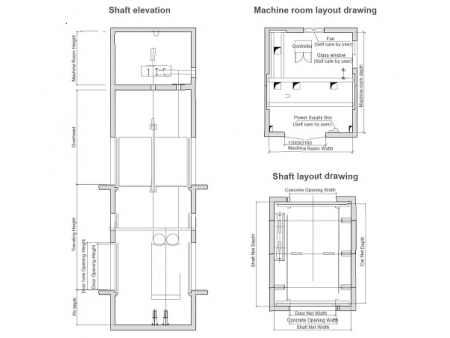

Dimensions
Load (kg) Speed (m/s) Door opening type Door opening size (W×H) (mm) Exterior size of car (W×D) (mm) Shaft size (mm) Machine room size (W×D×H) (mm)
(W×D) PIT OH
3000 0.25/0.5 Four panel center opening 2400×2200 2700×5800 4100×6160 1600 4800 4100×6160×2500
5000 0.25/0.5 Four panel center opening 2600×2200 3500×7200 4750×7560 4750×7560×2500
You can also match the vehicle elevator interior to your liking

Signal system, Ceiling series, Landing door series, We have different styles for you to choose

Why Choose FUJI Elevator

We have a team of passionate engineers who will collaborate with each customer to find solutions, and build custom elevators, escalators or moving walks by continually pushing the boundaries of innovation. Their expertise and experience have been verified in numerous different projects during nearly 40 years of activity. This means we know the elevator industry and we currently cover a wide range of market sectors with our in-depth knowledge.
