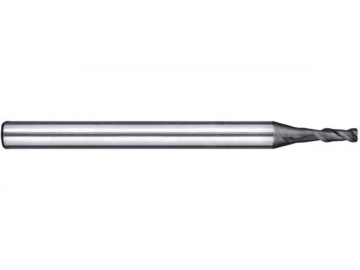

G-S2 Solid Carbide End Mill for Graphite Machining - Square End - 2 Flutes

G-S2  Solid Carbide End Mill for Graphite Machining - Square End - 2 Flutes
G-S2  Solid Carbide End Mill for Graphite Machining - Square End - 2 Flutes
G-S2  Solid Carbide End Mill for Graphite Machining - Square End - 2 Flutes
Request a Quote
Request a quote

Unit: mm

Order CodeCutting Diameter(D)Length of Cut(Lc)Overall Length(L)Shank Diameter(d)Type
G-S2-004008
0.40.8504A
G-S2-00802
0.82504A
G-S2-01003
13604A
G-S2-01506
1.56604A
G-S2-02006
26604A
G-S2-03009
39604A
G-S2-63009
39606A
G-S2-04012
412604B
G-S2-64012
412606A
G-S2-05015
515606A
G-S2-06018
618606B
G-S2-08024
824758B
G-S2-10025
10258010B
G-S2-12025
12258012B

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
