Intelligent Automatic Rigid Box Making Machine, LY-HB1500CZ
Box line for manufacturing set-up boxes and beveled-edge rigid boxes
- Production speed: 25-35 pcs/min
- Positioning accuracy: ±0.05 mm
- Setup time: 30 mins
Production Process
The LY-HB1500CZ intelligent automatic rigid box making machine is designed for high-volume production of rigid boxes, including smartphone boxes, gift boxes, cosmetics boxes, watch boxes, and beveled-edge boxes.

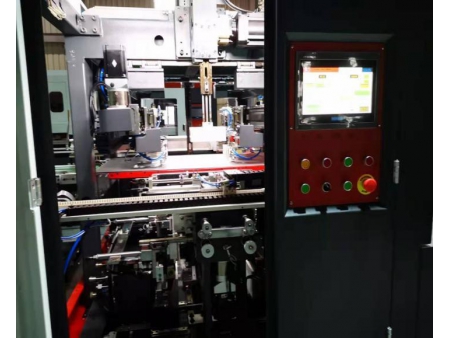

Controlled by a PLC system, HMI interface, and camera tracking system, the machine automatically completes key box-making processes, including wrap paper feeding, greyboard feeding, corner pasting, greyboard gluing, box lifting, side wrapping, edge turning-in, corner folding, and final forming. Its updated machine design also improves operator safety while giving the equipment a cleaner and more modern appearance.
The feeding, gluing, and conveying sections are servo-driven with stepless speed adjustment, supporting accurate operation, easier setup, and shorter changeover time. In the gluing section, a 10-megapixel camera works with a robotic arm to pick up and apply adhesive to the greyboard, achieving positioning accuracy of ±0.05 mm. The forming section uses Japanese ABBA linear guide blocks and a virtual cam drive system to ensure smooth movement, stable forming quality, deeper edge turning-in, and cleaner corner folding.
Technical Parameters| Paper Size | W | 95-600 mm |
| L | 120-700 mm | |
| Paper Thickness | 80-300 g/㎡ | |
| Pile Height | 800 mm | |
| Cardboard Thickness | 1-3 mm | |
| Rigid Box Size | L | 55-480 mm |
| W | 55-300 mm | |
| H | 15-160 mm | |
| Sleeve Box Size | L | 55-480 mm |
| W | 25-300 mm | |
| H | 15-160 mm | |
| Ear Overlap Size | 7-120 mm | |
| Ear Cross-Folding Size | 120 mm | |
| Manufacturing Speed | 25-35 pcs/min | |
| Setup Time | 30 mins | |
| Positioning Accuracy | ±0.05 mm | |
| Power Supply | 380V/50Hz | |
| Max. Power | 30kW/380V | |
| Air Pressure | 0.5-0.7 MPa (1.0-1.2m3/min) | |
| Glue Container Volume | 50 kg | |
| Machine Weight | 7500kg | |
| Overall Size (L*W*H) | 7500 mm*4200 mm*H3500 mm | |

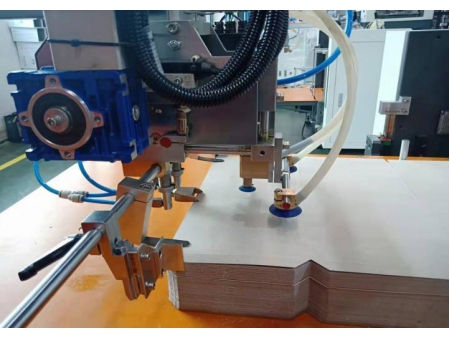

- Paper Feeder
- The servo-controlled feeder independently controls paper feeding and roller movement.
- The feeder prevents length deviation between consecutive sheets.
- Full-servo rear-suction feeding helps prevent double-sheet feeding and improves feeding stability.
- The integrated glue guide channel is easy to clean and maintain.
- Visual Positioning
- Features Yamaha robotic arms for precise positioning.
- The 10-megapixel visual positioning system delivers positioning accuracy of up to ±0.05 mm.
- Dual cameras and dual robotic arms work with XY-axis screw-drive modules for accurate positioning.
- Box Forming
- Features Yamaha robotic arms for precise positioning.
- The 10-megapixel visual positioning system delivers positioning accuracy of up to ±0.05 mm.
- Dual cameras and dual robotic arms work with XY-axis screw-drive modules for accurate positioning.
LISHUNYUAN provides all kinds of components in the rigid box production line. The products include visual positioning machines, feeding and gluing machines, notching machines, and etc.
