HS320 Brass Compression Fitting
Request a Quote
Features
- Both the CW602N and CW511L materials are optional.
- Approved for WaterMark Certification.
- Complies with AS 3688:2016 Standard.

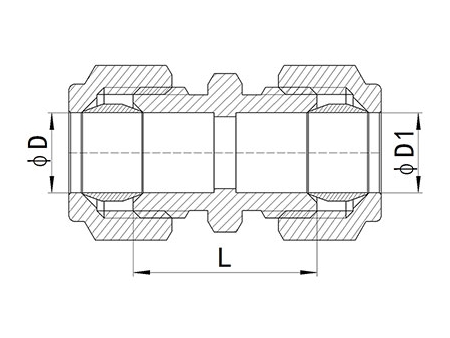

HS320-001 Compression Union
| SIZE | D | D1 | L |
| 15C×15C | 12.8 | 12.8 | 29.5 |
| 20C×20C | 19.1 | 19.1 | 34.5 |
| 20C×15C | 19.1 | 12.8 | 32.5 |

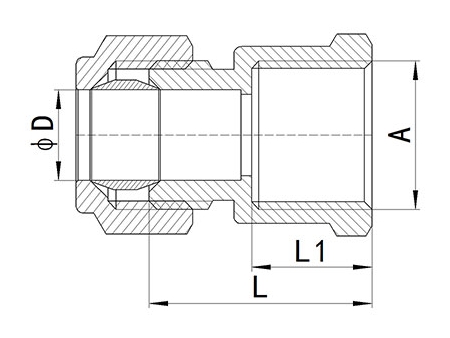

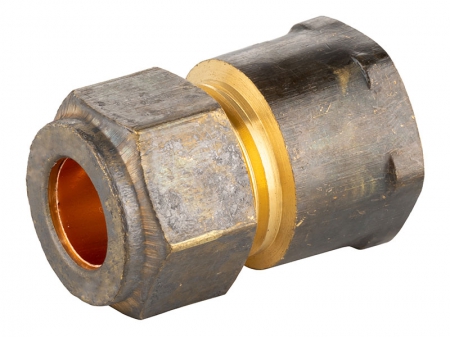

HS320-002 Compression Union Female
| SIZE | D | A | L | L1 |
| 15C×15FI | 12.8 | Rp1/2 | 31.5 | 17 |
| 15C×20FI | 12.8 | Rp3/4 | 33 | 18.5 |
| 20C×20FI | 19.1 | Rp3/4 | 35 | 18.5 |

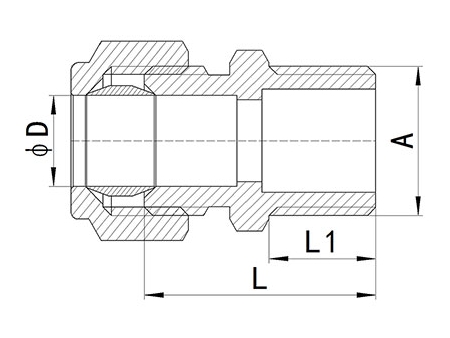

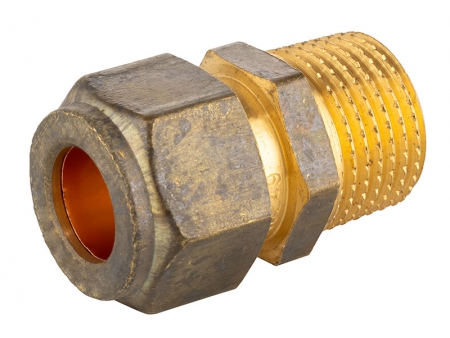

HS320-003 Compression Union Male
| SIZE | D | A | L | L1 |
| 15C×15MI | 12.8 | R1/2 | 32.5 | 15 |
| 15C×20MI | 12.8 | R3/4 | 35 | 16.5 |
| 20C×15MI | 19.1 | R1/2 | 35.5 | 15 |
| 20C×20MI | 19.1 | R3/4 | 37 | 16.5 |

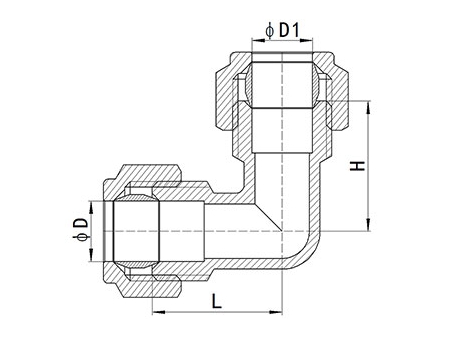

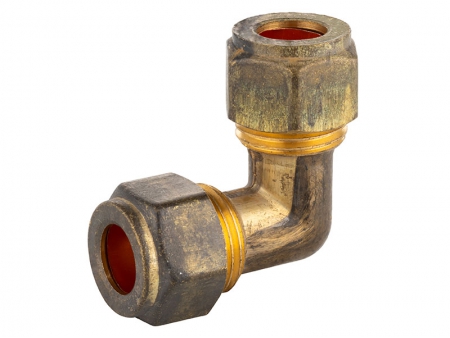

HS320-004 Compression Elbow
| SIZE | D | D1 | L | H |
| 15C×15C | 12.8 | 12.8 | 27.5 | 27.5 |
| 20C×15C | 19.1 | 12.8 | 28.5 | 29.5 |
| 20C×20C | 19.1 | 19.1 | 31.5 | 31.5 |

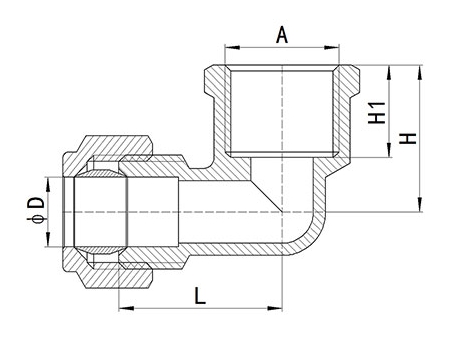

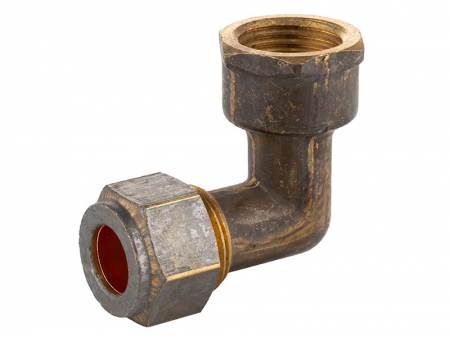

HS320-005 Compression Elbow Female
| SIZE | D | L | A | H | H1 |
| 15C×15FI | 12.8 | 30 | Rp1/2 | 27 | 17 |
| 20C×20FI | 19.1 | 34 | Rp3/4 | 31 | 18.5 |

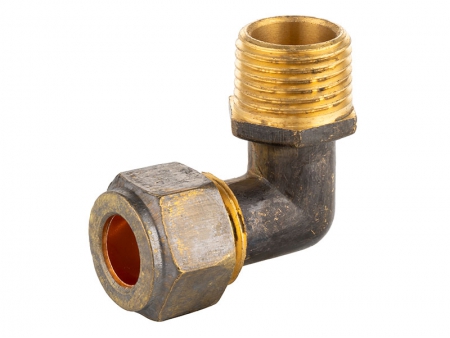

HS320-006 Compression Elbow Male
| SIZE | D | L | A | H | H1 |
| 15C×15MI | 12.8 | 38 | R1/2 | 34 | 15 |
| 15C×20MI | 12.8 | 31 | R3/4 | 36.5 | 16.5 |
| 20C×20MI | 19.1 | 32.5 | R3/4 | 38.5 | 16.5 |

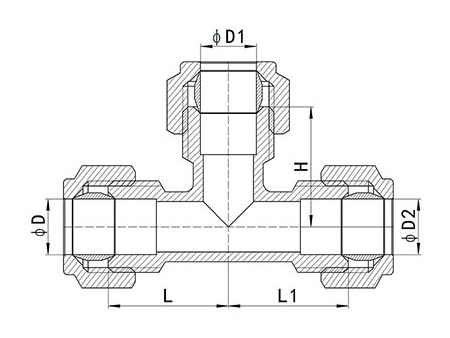

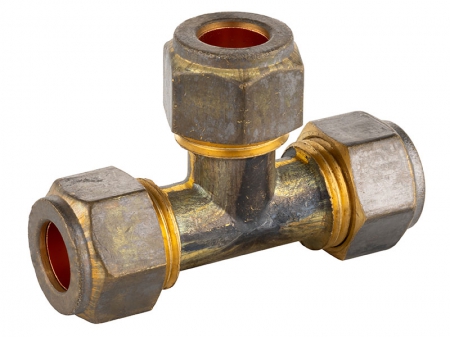

HS320-007 Compression Tee
| SIZE | D | D1 | D2 | L | L1 | H |
| 15C×15C×15C | 12.8 | 12.8 | 12.8 | 27.5 | 27.5 | 27.5 |
| 20C×20C×20C | 19.1 | 19.1 | 19.1 | 31.5 | 31.5 | 31.5 |
| 20C×15C×20C | 19.1 | 12.8 | 19.1 | 28.5 | 28.5 | 30 |
| 20C×20C×15C | 19.1 | 19.1 | 12.8 | 31.5 | 29.5 | 31.5 |

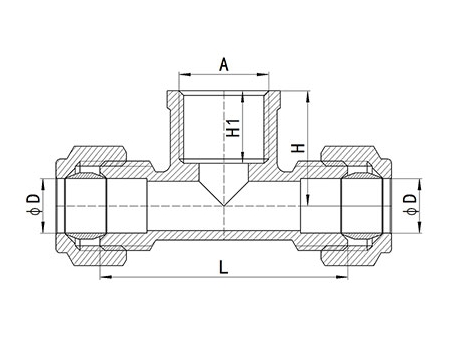

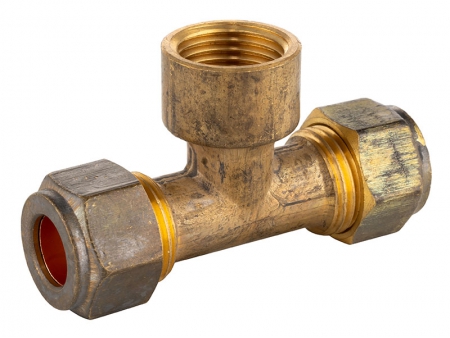

HS320-008 Compression Tee Female
| SIZE | D | L | A | H | H1 |
| 15C×15FI×15C | 12.8 | 58 | Rp1/2 | 27 | 17 |
| 20C×20FI×20C | 19.1 | 68 | Rp3/4 | 31 | 18.5 |

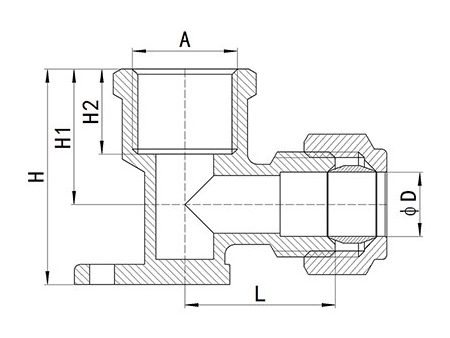

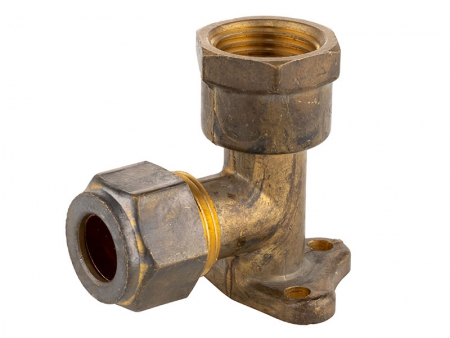

HS320-009 Compression Wallplate Elbow Female
| SIZE | D | L | A | H | H1 | H2 |
| 15C×15FI | 12.8 | 30 | Rp1/2 | 43 | 27 | 17 |
| 20C×20FI | 19.1 | 34 | Rp3/4 | 50 | 31 | 18.5 |

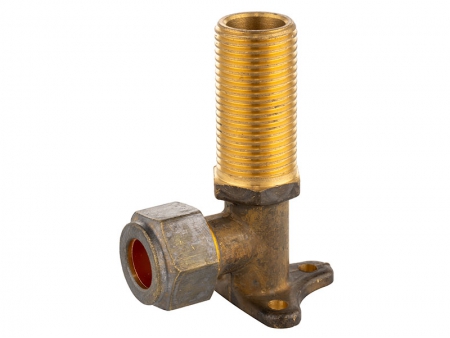

HS320-010 Compression Wallplate Elbow
| SIZE | D | L | A | H | H1 | H2 |
| 15C×15MI | 12.8 | 28 | G1/2 | 75 | 59 | 40 |
HS320-011 Compression Stop End
| SIZE | D | L |
| 15C | 12.8 | 17.5 |
| 20C | 19.1 | 20.5 |
