Request a Quote

Features
  • Both the CW602N and CW511L materials are optional.
  • Approved for WaterMark Certification.
  • Complies with AS 3688:2016 Standard.

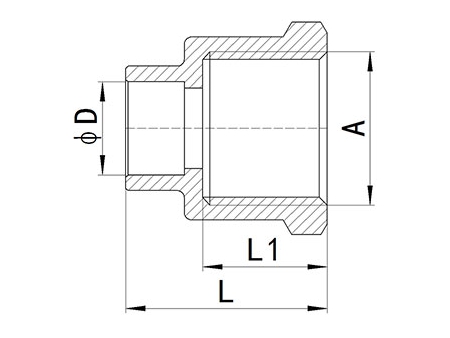

HS340-001 End-Feed Connector Female
SIZE D A L L1
15C×15FI 12.72 Rp1/2 27.5 17
20C×20FI 19.07 Rp3/4 29 18.5

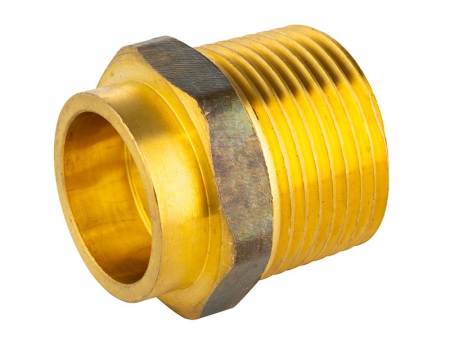

HS340-002 End-Feed Connector Male
SIZE D A L L1
15C×15MI 12.72 R1/2 26.5 15
20C×20MI 19.07 R3/4 29 16.5

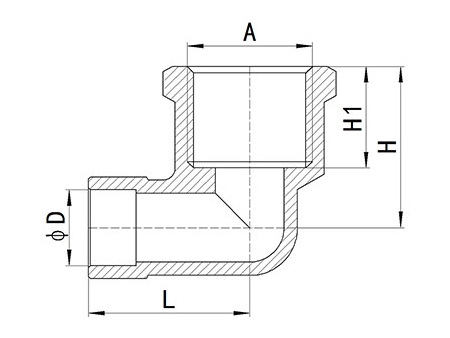

HS340-003 End-Feed Elbow Female
SIZE D A L H H1
15C×15FI 12.72 Rp1/2 27 27 17
20C×20FI 19.07 Rp3/4 29.5 31 18.5

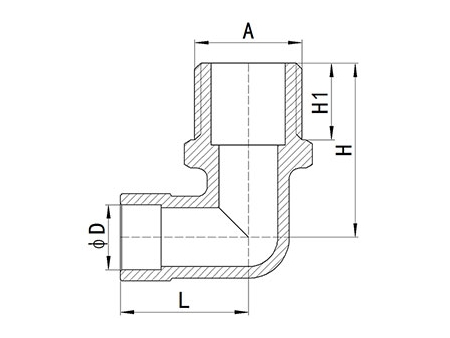

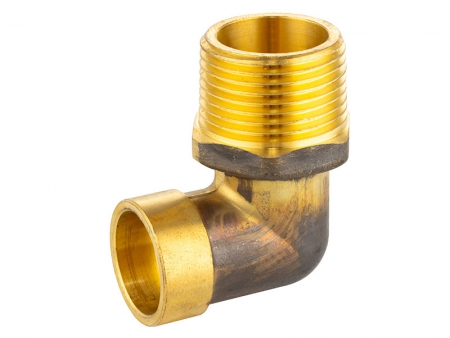

HS340-004 End-Feed Elbow Male
SIZE D A L H H1
15C×15MI 12.72 R1/2 25 34 15
20C×20MI 19.07 R3/4 28 38.5 16.5

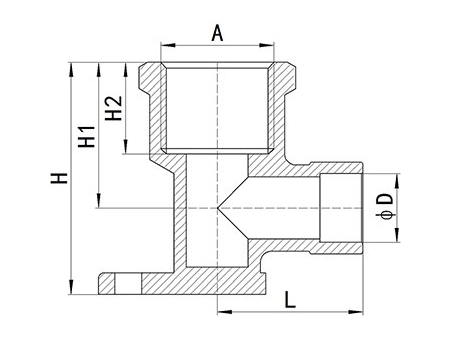

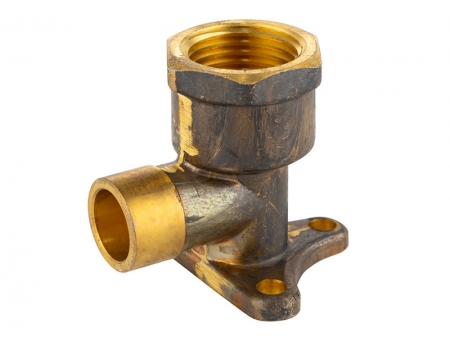

HS340-005 End-Feed Wall-Plate Elbow
SIZE D A L H H1 H2
15C×15FI 12.72 Rp1/2 27 43 27 17
20C×20FI 19.07 Rp3/4 29.5 50 31 18.5

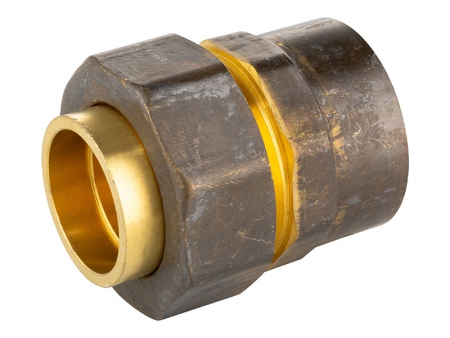

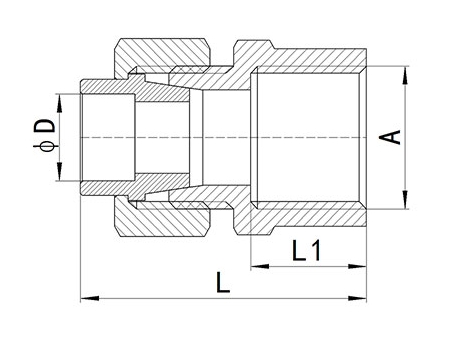

HS340-006 End-Feed Straight Union Connector Female
SIZE D A L L1
15C×15FI 12.72 Rp1/2 42 17
20C×20FI 19.07 Rp3/4 45.5 18.5
25C×25FI 25.42 Rp1 54 21

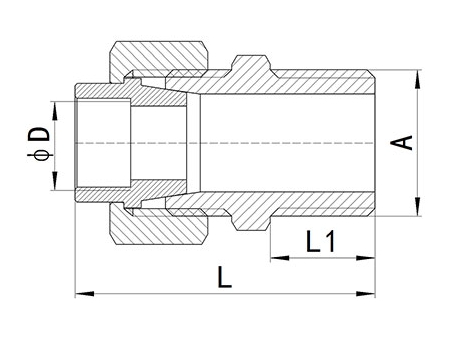

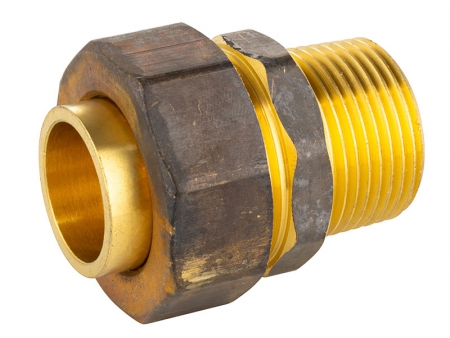

HS340-007 End-Feed Straight Union Connector Male
SIZE D A L L1
15C×15MI 12.72 R1/2 43 15
20C×20MI 19.07 R3/4 47.5 16.5
25C×25MI 25.42 R1 57 19
