Cutting Plotter
Request a Quote
Cutting plotters are essential tools in the advertising and decoration industry, precisely cutting and engraving designs from computers onto various materials such as sticky notes, heat transfer paper, and heat transfer vinyl. These devices can also handle paper and thin metals.

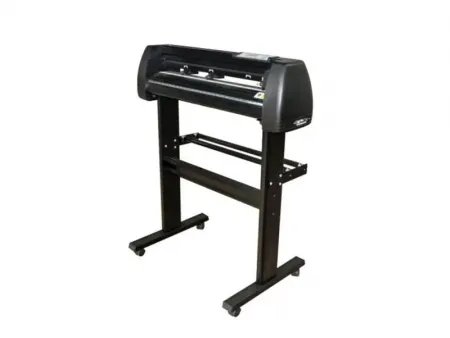

Vinyl Cutter Plotter, PKH Series
- Equipped with a large LCD that supports both Chinese and English, making it easy to operate.
- High cutting accuracy ensures even the smallest and most intricate Chinese characters are perfectly rendered.
- Features a simple and convenient adjustment mechanism, requiring just a light turn to set the blade.
- Multiple springs ensure even stress distribution, promoting uniform cutting and reducing material waste.
- Offers versatile connectivity options including USB, U disk, and serial ports for efficient data transfer.
Specifications
| Max. Paper Width (mm) | Max. Cutting Width (mm) | Max. Cutting Speed (mm/s) | Max. Cutting Force (g) | Gross Weight (kg) | Packing Size (cm) |
| 365 | 275 | 10-800 | 10-500 | 9.5 | 58×32×36 |
| 720 | 630 | 19 | 95×33×42 | ||
| 870 | 780 | 19 | 108×32×40 | ||
| 1100 | 1010 | 24 | 131×32×40 | ||
| 1350 | 1260 | 26 | 158×32×40 |
Vinyl Cutter Plotter, SK Series
Specifications
| Max. Paper Width (mm) | Max. Cutting Width (mm) | Max. Cutting Speed (mm/s) | Max. Cutting Force (g) | Gross Weight (kg) | Packing Size (cm) |
| 365 | 275 | 10-800 | 10-500 | 9.7 | 60×34×36 |
| 720 | 630 | 20 | 95×33×42 | ||
| 870 | 780 | 22 | 110×34×40 | ||
| 1100 | 1010 | 26 | 133×34×42 | ||
| 1350 | 1260 | 27 | 158×33×42 |

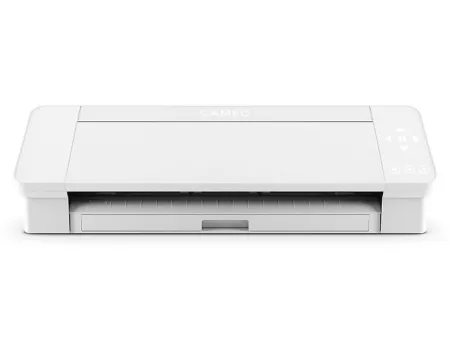

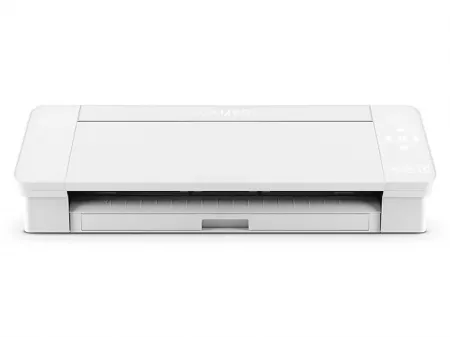

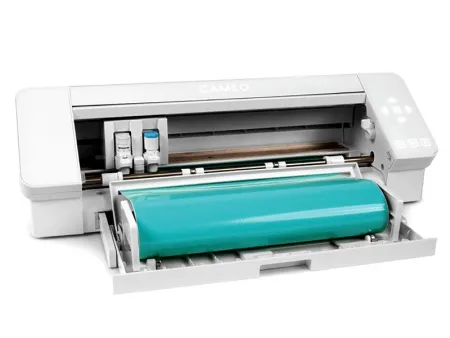

Desktop Cutting Plotter, CAMEO
The desktop cutting plotter is tailored for high-precision cutting across a diverse array of materials including vinyl, cardstock, fabric, film, heat shrink sheets, and automotive decals.
- Cutting Force: 33 gf
- Cutting Speed: 33cm/s
- Compatible Media Width: 305mm
- Cutting Width: 300mm
- Size: 64×24×29cm
- Net/gross weight: 7kg
Features

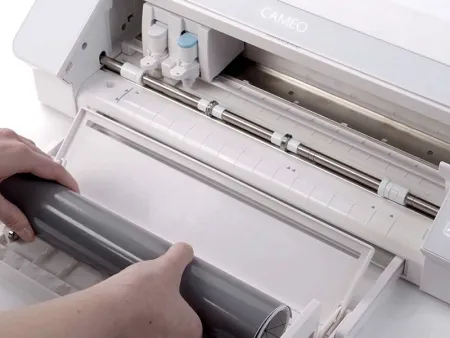

- Equipped with a built-in reel for effortless feeding and cutting of roll materials like vinyl and transfer film.
- Features an upgraded magnetic tool holder for automatic tool recognition, enhancing efficiency and precision.
- Boasts an LED touch operation panel, offering a streamlined and aesthetically pleasing user experience.
- Includes an additional cutting tool at the real for more precise cutting.
- Supports Bluetooth, enabling convenient wireless cutting operations via mobile application.
