Cube Ice Machines (CV1000 / CV2000 / CV3000 / CV5000 / CV10000 / CV20000 )
Large-scale edible cube ice machine is a large-scale production equipment for edible cube ice making. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place.
Guangzhou Icesource Refrigeration (CBFI) is a leading manufacturer of large-scale edible ice cube machines. It has a core invention patent (patent number: 200710030591.7). The company uses self-developed flat-wall fluid film heat transfer and circulating hot air ice extraction technologies to solve the defects that may occur in small ice cube machines, such as low production capacity, high power consumption, uneven ice thickness, and unstable ice harvest. At the same time, we provide a one-stop solution for a fully automated large-scale edible cube ice production line to reduce labor costs and improve production efficiency. The system ensures the safety and sanitation of edible ice in all aspects. Icesource refrigeration large-scale edible cube ice machine is the first choice for your edible ice factory.
- Daily Output (T/24h): 1-20T
- Size of Cube Ice: 22*22*22mm / 29*29*22mm / 38*38*22mm
- Refrigerant: R22/R404A
- Cooling Method: Water Cooling / Air Cooling

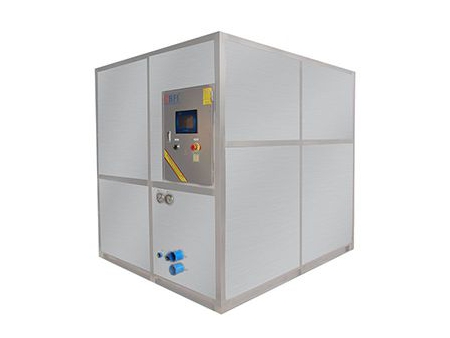

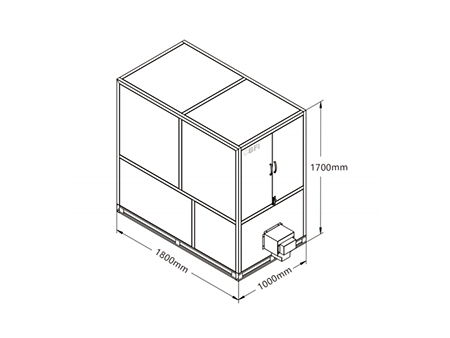

CV1000 Cube Ice Machines
- Daily output (T/24h): 1
- Compressor power: 4.34kw
- Fan power for cooling tower: 0.18kw
- Cooling pump power: 1.1kw
- Unit size (mm): L1800*W1000*H1700
- Unit N.W.(kg): 800

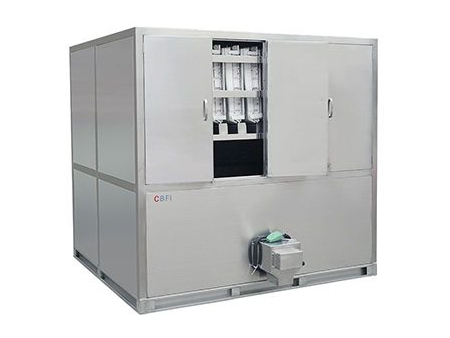

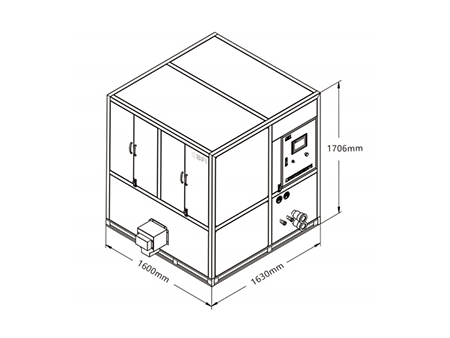

CV2000 Cube Ice Machines
- Daily output (T/24h): 2
- Compressor power: 7.88kw
- Fan power for cooling tower: 0.37kw
- Cooling pump power: 1.5kw
- Unit size (mm): L1630*W1600*H1706
- Unit N.W.(kg): 1000

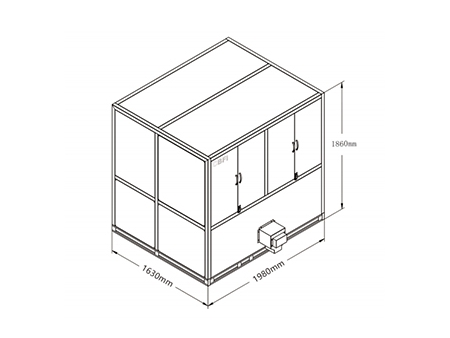

CV3000 Cube Ice Machines
- Daily output (T/24h): 3
- Compressor power: 10.58kw
- Fan power for cooling tower: 0.56kw
- Cooling pump power: 1.5kw
- Unit size (mm): L1980*W1630*H1860
- Unit N.W.(kg): 1200

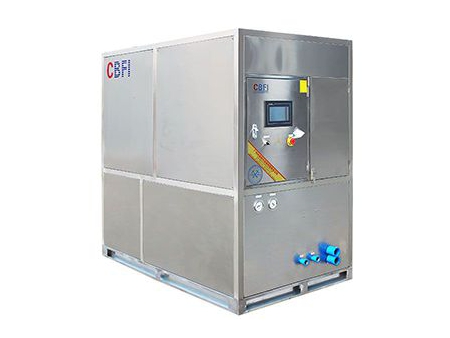

CV5000 Cube Ice Machines
- Daily output (T/24h): 5
- Compressor power: 21kw
- Fan power for cooling tower: 0.75kw
- Cooling pump power: 2.2kw
- Unit size (mm): L2890*W1780*H1860
- Unit N.W.(kg): 1600

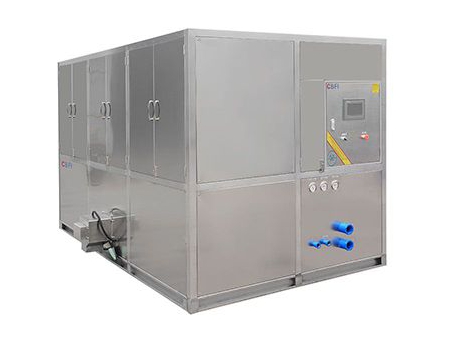

CV10000 Cube Ice Machines
- Daily output (T/24h): 10
- Compressor power: 42kw
- Fan power for cooling tower: 1.5kw
- Cooling pump power: 4kw
- Unit size (mm): L5730*W1780*H2130
- Unit N.W.(kg): 3000

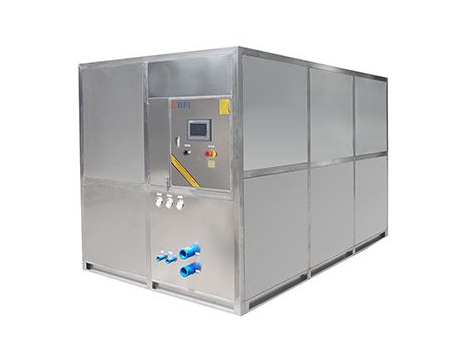

CV20000 Cube Ice Machines
- Daily output (T/24h): 20
- Compressor power: 73.5kw
- Fan power for cooling tower: 2.2kw
- Cooling pump power: 5.5kw
- Unit size (mm): L7100*W2250*H2300
- Unit N.W.(kg): 5000
| Model | | | | | | | |
| Daily output (Ton/24h) | 1 | 2 | 3 | 5 | 10 | 20 | |
| Compressor Power | 4.34kw | 7.88kw | 10.58kw | 21kw | 42kw | 73.5kw | |
| Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.56kw | 0.75kw | 1.5kw | 2.2kw | |
| Cooling Pump Power | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 4kw | 5.5kw | |
| Unit size | L (mm) | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 |
| W (mm) | 1000 | 1600 | 1630 | 1780 | 1780 | 2250 | |
| H (mm) | 1700 | 1706 | 1860 | 1860 | 2130 | 2300 | |
| Unit N.W.(kg) | 800 | 1000 | 1200 | 1600 | 3000 | 5000 | |
- Compressor brand: Bitzer / Frascold
- Power supply: voltage 380V/3P/50Hz
- Operating conditions: water supply temperature: 20°C, ambient temperature: 32°C, condensing temperature: 40°C, evaporating temperature: -10℃.
-
Safe and sanitary
The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitary, safe, and in compliance with the international standards. -
Low power consumption
Power consumption is 85-90 degrees/ton in summer, when the ambient temperature is below 23 degrees, the power consumption will be 70-85 degrees/ton. -
Automatic operation
Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. -

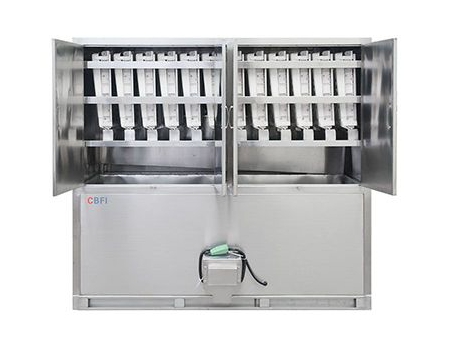

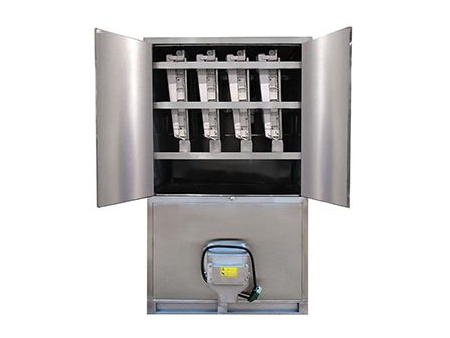

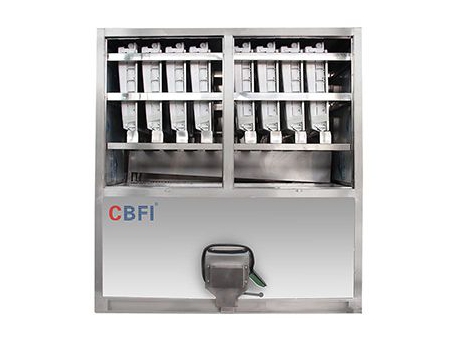

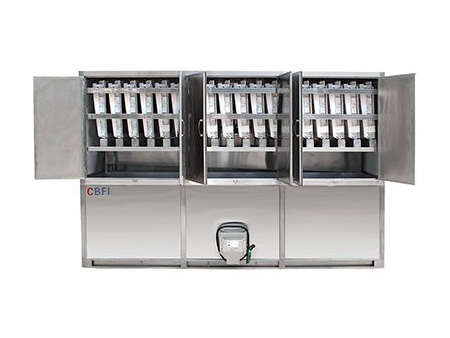

Three Types of Ice Molds
Our ice blocks are customizable to meet specific needs. The nickel-plated ice molds are designed to resist corrosion and maintain hygiene, ensuring that the ice produced is safe and edible. This attention to detail guarantees quality in every ice cube. -
Stable performance
Ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. -
Reliable brand accessories
The compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; -

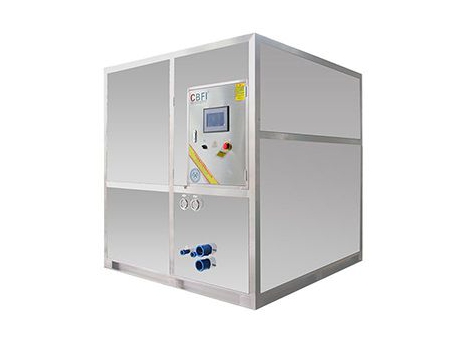

Control System with Touchscreen
The entire system is managed through a touchscreen control panel that simplifies operations. Its user-friendly display allows for easy monitoring of operations, enhancing control and efficiency. This intuitive interface makes it easy for anyone to operate the ice slicer, improving overall user experience.
