Automatic Labeling Machine, YTB-AC2000

  • Power supply AC220V 50Hz 0.83kW
    Air pressure (MPa) 0.2-0.5
    Container size (mm) Ø(10-20), H(25-95) (customizable)
    Label dimension (mm) L(25-75) x H(25-75) (customizable)
    Label roll (mm) Inner dia. Ø76, outer dia. Ø280
    Direction of label scroll Clockwise
    Labeling speed (pcs/min) 0-150 (stepping motor), 0-250 (servo motor) depending on the label length
    Labeling precision (mm) ±0.5
    Table height (mm) 900
    Machine dimension (mm) 1830x700x1650
    Machine weight (kg) 250

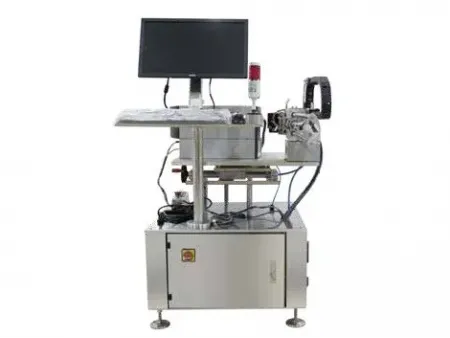

Instant Printing Labeling Machine, YTB-DC2000

  • Power supply AC220V 50Hz 0.5kW
    Air pressure (MPa) 0.5-0.8
    Applications Box case (customizable)
    Label dimension (mm) L(50-150) x H(40-120) (customizable)
    Label scroll (mm) Inner dia. Ø76, outer dia. Ø200
    Labeling speed (pcs/min) 0-15, One label, depend on the object size and label length
    Labeling precision (mm) ±3
    Table height (mm) 700±50 (customizable)
    Machine dimension (mm) 1000x800x1450
    Machine weight (kg) 200

Speak To Our Specialists

Our team of experienced specialists provides strapping and packaging solutions based on their in-depth knowledge and expertise for your applications.
