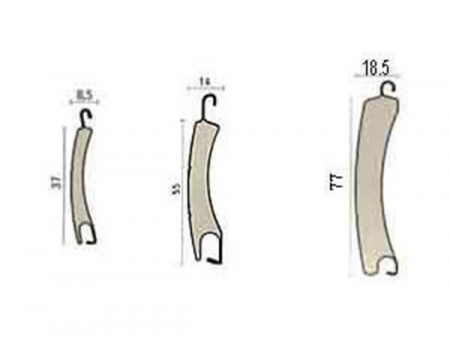

PU Insulated Rolling Shutter Slats Roll Forming Machine
This roll forming machine can produce rolling shutter slats with polyurethane foam online injected. Its PLC control system such as PLC, touch screen, inverter and encoder are imported from Japan.
- Steps of rollers 32 stations
- Main motor power 11kW
- Cutting motor 2.2kW
- Mounting dimension 40m x 1m x 1.5m
Technical Data
- Steps of rollers32 stations
- Length of main machine24 meter
- Diameter of roller shaft40mm
- Material of rollersGCr15
- Main motor power11kW
- Production speed6-10m/min (including punching)
- Suitable materialaluminum coil or color steel coil, thickness 0.28mm~0.426mm
- Driving methodgear & worm drive
- Low pressure PU foam injecting machineGZY-10, no jam, electric relay automatic control
- Pneumatic following flying cutter
- Cutting motor2.2kW
- Mounting dimension40m x 1m x 1.5m
- Auto stacking systemunloading rack stacking device
- Inject printing device for company name, date and time is optional.

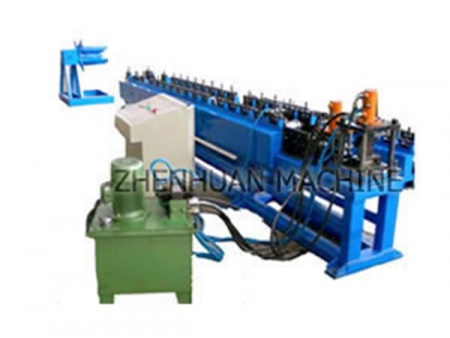

Industrial Rolling Shutter Slats Roll Forming Machine
This roll forming machine can produce rolling shutter slats with polyurethane foam online injected. Its PLC control system such as PLC, touch screen, inverter and encoder are imported from Japan.
- Roll forming speed 10 m/min
- Hydraulic power 6MPa
- Total weight about 2700kg
- Dimension about 4000 x 700 x 950mm
Technical Data
- Suitable thickness of strip material for rolling shutter slats roll forming machine0.6~1.2 mm
- Roll forming speed10 m/min
- Rolling accuracyless than /-1.5mm (in 5m)
- Steps of main rollers12 steps
- Roller shaft diameter40mm
- Material of rollersGCr15, quenched, HRC 58~62
- Material of shaftsgood 45# steel
- Material of mould cutter &Cr12
- PLC automatic cut-to-length systemPLC and inverter from Japan,
- Power of decelerator motor3kW, 380V, 50Hz
- Power of hydraulic motor2.2kW, 380V, 50Hz
- Hydraulic power6MPa
- Cutting & punching systemfollow mould cutting/punching system (cutting & end clamping hole punching are done by one time)
- Main electric componentsimported from Japan
- Driving systemCycloid pin wheel decelerator, chain drive
- Total weightabout 2700kg
- Dimensionabout 4000 x 700 x 950mm
- Raw materialgalvanized mild steel
