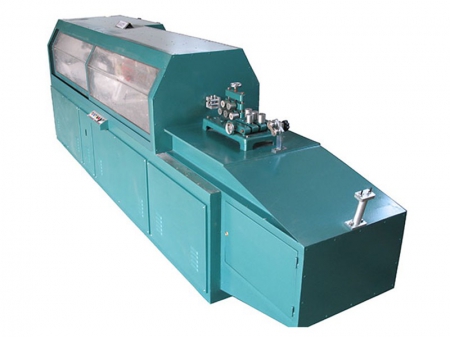

K Span Roll Forming Machine
This product has been discontinued and removed from our shelves.
- MIC-240 Super K Span
- MIC-120 K Span
- Standing Seam (Bemo)
This roll forming machine is widely used in the construction of factories, garages, hangars, stadiums, exhibition halls, theaters, and so on.

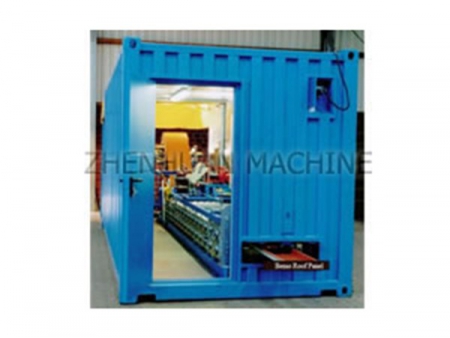

This MIC-240 super K span machine developed by us adopts the same technology with ABM MIC-240 forming machine. It is comprised of mechanical expansion decoiler, straight panel forming unit, hydraulic / electric mould cutting device, curving panel forming unit, control system, run-out racks for straight, curve panels and all other accessories and tools. For all parts are installed on a mobile chassis, our super K span roll forming machine is ideal for site working.
This roll forming machine is widely used in the construction of factories, garages, hangars, stadiums, exhibition halls, theaters, and so on.
- Rollers are made of good steel, coated with rigid chrome.
- The rubber feeding device of it can feed 0.5-1.5mm color steel sheets.
- Light and convenient hoist, only 2kg (those from USA are 30kg). So quick and convenient installation is possible.
- Large span, high corrugation, high tension strength, without nuts.
- During production, it is unnecessary for you to adjust the clearance between top and bottom rollers.
- Mounting dimension8900mm x 2300mm x 2500mm
- Total weightabout 10500kg
- Control systemelectric control
- Main forming unit driving motor power7.5kW
- Curving motor power3 1.1 1.1kW
- Electric cutting motor power3kW
- Material of rollers45# steel, quenched HRC 58-62
- Material of roller shafts45# steel, adjusted
- Material of cutting bladeCr12Mov, quenched
- Stations of rollers13 steps
- Forming speed10000~12000 mm/min
- Max span:36000mm
This roll forming machine is widely used in the construction of factories, garages, hangars, stadiums, exhibition halls, theaters, and so on.
- Rollers are made of good steel, coated with rigid chrome.
- The rubber feeding device of it can feed 0.5-1.5mm color steel sheets.
- Light and convenient hoist, only 2kg (those from USA are 30kg). So quick and convenient installation is possible.
- Large span, high corrugation, high tension strength, without nuts.
- During production, it is unnecessary for you to adjust the clearance between top and bottom rollers.
- Mounting dimension8900mm x 2250mm x 2400mm
- Total weightabout 9500kg
- Control systemelectric control
- Main forming unit driving motor power7.5kW
- Curving motor power3 1.1 1.1 kW
- Electric cutting motor power3kW
- Material of rollers45# steel, quenched HRC 58-62
- Material of roller shafts45# steel, adjusted
- Material of cutting bladeCr12Mov
- Step of rollers13 steps
- Forming speed10000~12000 mm/min
- Max span24000mm
Zhenhuan is a forming machine manufacturer and supplier in China. You can find high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines in our company.
