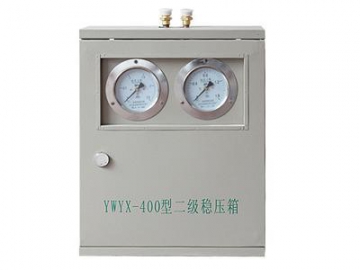

Oxygen Pressure Regulator
Request a Quote
Description
The oxygen pressure regulator is the gas output pressure stabilization device in a gas supply system. It is used to ensure a patient gas supply under a normal and stable pressure. It is applicable for different types of gas, including oxygen, air, carbon dioxide, nitrogen.
- The oxygen pressure regulator’s valve is made of H59-1 brass, giving it a high corrosion resistance and long service life.
- The sealing elements are made from a nitrile rubber with a higher hardness.
- Inlet pressure: 0.5Mpa
- Outlet pressure: 0-0.4Mpa (adjustable)
- Pressure rise: ≤ 0.06Mpa
- Easy to use, adjustable pressure, stable performance
- Under the pressure of 0.5Mpa, it is safe and reliable, ensuring the regulator will accurately carry out pressure regulation and stabilization with no leaks.
Operating Instructions
Insert the plug of pressure regulator valve into the gas outlet, then slowly adjust the valve stem in a clockwise manner to increase the pressure. Check the pointer on the pressure gauge to see if it meets your requirements, then screw the lock nut. After the lock nut has been screwed into place, the gas supply system is safe to use.
