HV Motor Coil Winding Machine

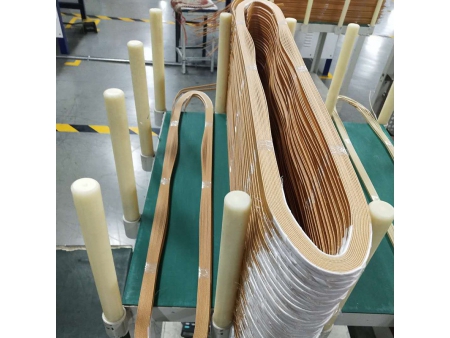

HV motor coil winding machines are specially designed for vertically winding flat conductors into super big size coils in a spindle-shaped configuration for high voltage motors. Our coil winder is equipped with several conductor pay-off devices, capable for single conductor or multi-conductors winding. Parallel winding is also feasible.
Main Features
- Constant tension winding, perfect finished coil terminal shape and size
- Pay-off devices are equipped with magnetic brake, auto detecting the diameter of conductor coils
- Available with tail conductor tension adjustment function
- Even if the conductor is cut for the last coil, tension of the waiting conductor is kept for next coil
- High automation, auto feeding, winding, counting and cutting
- PLC control, HMI operation, parameters such as winding turns, winding speed, shutter center distance, lead length, winding tension, etc. can be preset, saved and recalled for next time use
- High precision, conductor feeding is driven by the servo motor
Technical Data
- Machine modelZWTT-2000 (other models available)

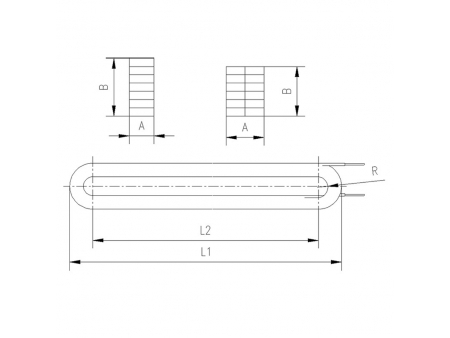

- Applicable coil length (L1)450~5000mm
- Applicable shutter center distance (L2)400~4900mm
- Applicable coil section width (A)2~24mm
- Applicable coil section height (B)10~80mm
- Applicable single conductor width2~10mm
- Applicable single conductor thickness1~8mm
- Lead length range50~500mm
- Shutter diameter10, 15, 20mm (two sets each size)
- Magnetic braking pay-off device6 units
- Parallel winding conductor numberMax. 2
- Winding mandrel speed0~50rpm
- Max. Load of winding mandrel1200kg
- Winding turnsMax. 9999
- Working center height1150mm
- Pay-off damping moment10~100N·m (adjustable)
- Total electric power11kW
