Motor Coil Winding Machine
We also provide variety coil winding machines for different motors, such as wheel motor, generator, air purifier motor, treadmill motor, balance car motor, pump motor, washing machine motor, air conditioning compressor motor and so on.
- Laminations
- Table Fan
- Power Tools Stator
- Power Tools Rotor
- Ceiling Fan Stator
- Stator
- Coil Rough
- Single Head
- Coil Finishing
This coil winding machine is special for ceiling fan stators production.
It features winding displacement function and stepless motor control.
- Machine code: YC-RX-002
- Suitable for wires: 0.2-0.7mm
- Thickness of winding: 8-40mm
- Power: 0.75kW x 2
- Output: 250-300pcs/8hours

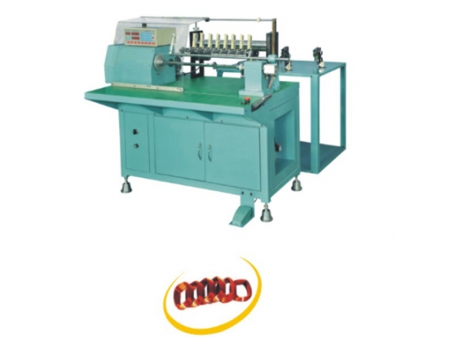

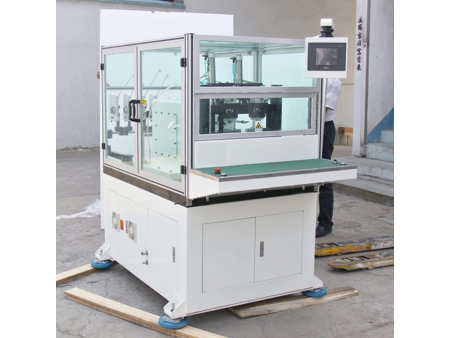

This coil winding machine is used for automatically winding coils for various motors, such as industrial motors, air conditioner motors, washer motors, electrical fan motors, pump motors and so on.
- Machine codeZH-RX-001
- Suitable diameter of wires0.1-1.5mm
- Transfer distanceLess than 180mm
- Winding forming diameterLess than 250mm
- Max. rotation speed2500rpm
- Air pressure0.4-0.7MPa
- Motor power1.5kW
This two-pole stator winding machine is a special equipment for two-pole stator (wide slot) winding. The coil winding machine is equipped with manual upper and lower molds, realizing automatic feeding, automatic winding, and automatic cutting and clamping lines. The mold has a self-locking function, which is fast, light and reliable.
- Machine codeTS-1A
- Suitable wire diameter0.15-1.3mm
- Stator core ID20-60mm
- Stator core height10-70mm
- Stator polesTwo
- Stator core ODФ50-Ф150mm
- Number of turns0-9999
- Total power4.5kW
This automatic rotor winding machine is a double- flyer armature winding machine specially designed for the production of slot-type commutator rotors. It is suitable for winding medium and thick wire coils for rotors in high-speed.
This coil winding machine is widely used in DC winding of DC and series excitation motors.
- Machine codeTD-2B
- Suitable wire diameter0.2-1.2mm
- Rotor diameter20-90mm
- Commentator diameterФ8-Ф60mm
- Rotor stack height10-130mm
- Number of turns0-9999
- Winding speed0-2000rpm
- Programs to be saved0-99
Except for motor coil winding machines for normal industrial motors, we have all other related machines for motor stator processing:
This machine is for inserting insulation paper to slots of ceiling fan stators. Only stator core loading & unloading are manual, other process is automatic.
By changing related tools, different stators can be inserted.
- Machine codeYC-CZ-004
- Suitable O.D60-220mm
- Suitable slots8-36 slots
- Suitable stack8-160mm
- Output0.5-1.0 seconds/slot
- Motor power1HP
This machine will insert coils and slot papers into stator slots in one cycle automatically.
- Model: ZH-QX-003
- Applicable stator ID: 30-130mm
- Stator stacking height: 10-100mm
- Max. number of slots: 36
- Production speed: 20-30 seconds /pc
- Control & driving: PLC HMI servo motor
- Electric power: 4kW
Coil rough forming machine is used for tidying the exterior of coil after insertion.
- Machine code: ZH-ZX-001
- Min. stator ID: 30mm
- Max. stator OD: 160mm
- Suitable stator stacking height: 20-120mm
- Displacement of cylinder: 30F
- Power: 3kW
Coil lacing machine is used for lacing coils on both side of stators.
- Machine code: ZH-BX-001
- Max. stator OD: 190mm
- Min. stator ID: 30mm
- Stator stack height: 110mm
- Lacing type: Every slots or every two slots
- Lacing speed: 0.5-0.7 second/slot
- Air pressure: 0.4-0.7MPa
- Electric motor power: 1kW
This equipment is used to finish shaping coils, giving them a more precise dimension and a better appearance.
- Machine code: ZH-ZX-002
- Applicable stator ID: 30-130mm
- Max. stator OD: 200mm
- Stator stacking height: 15-150mm
- Displacement of cylinder: 20F
- Electric motor power: 2.5kW
