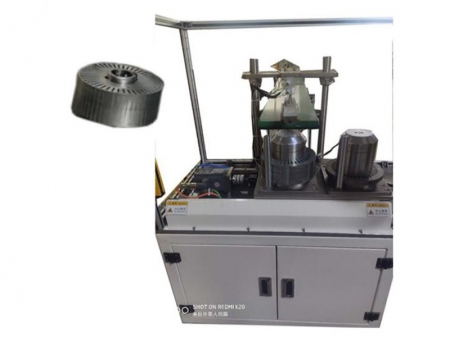

Automatic Stator Rotor Lamination Stacking Machine

Automatic stator rotor lamination stacking machine is installed after lamination punching press. This kind of stacking machine can collect and stack each lamination from punching press, keep them ordered on ID, OD and slots.

There are two models, one is for diameter range 80~300mm, and another is for diameter range 300~600mm.

Technical Data

• Stacking height10mm-200mm
• Stacking speed100~250 laminations per minute
• Working stations4
• Machine dimension1500 x 1200 x 1700mm
• Machine weight500kg
