Aerosol Can End (Top and Bottom)

Aerosol Can End <small>(Top and Bottom)</small>
Aerosol Can End <small>(Top and Bottom)</small>
Request a Quote
View All: http://can-equipment.com
Parameters of Aerosol Can Top
Item NO. 200 ＃(52#)
Thickness 0.28
Tin Coating 2.8/2.8 g/m2
Hardness T2.5-T3 BA
Outside Diameter 31.20 ±0.15
Inside Diameter 25.4 ±0.10
Total Height 14.0 ±0.10
Compound 65-70 mg
Overall Diameter 57.60 ±0.15
Countersink Height 4.90 ±0.10
Curl Height 2.20 ±0.10
Countersink Diameter 48.0 ±0.10
Chuck Diameter 47.30 ±0.10
Deformation Stress ≥1.3Mpa
Burst Pressure ≥1.6Mpa
Weight 9.15 ±0.20g
Parameters of Aerosol Can Bottom
Item NO. 200#
Thickness 0.28
Tin coating 2.8/2.8g/m2
Hardness T4 CA
Overall Diameter 59.30 ±0.10
Curl Diameter 57.20 ±0.20
Curl Height 2.10 ±0.10
Total Height 11.90 ±0.10
Compound 60-70mg
Countersink Diameter 50.10 ±0.10
Chuck Diameter 49.30 ±0.10
Countersink Depth 3.0 ±0.10
Deformation Stress 1.4Mpa
Burst Pressure 1.6Mpa
Weight 7.98 ±0.14g

Related Names
Aerosol Can Lid | Tinplate Can Cap

Related products
Metal Can End Production Line
Metal Can End Production Line

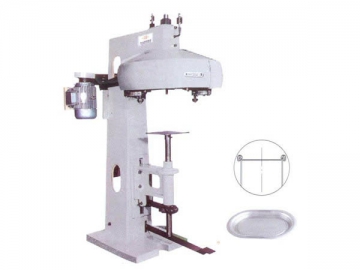

Metal Can Making Machine <small>(Custom Shape)</small>
Metal Can Making Machine (Custom Shape)

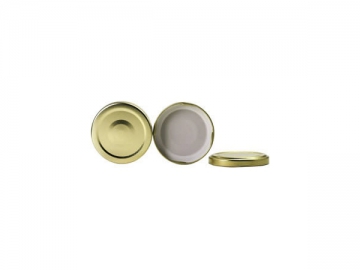

Metal Can Ends
