Small linear actuators are one of the most popular types of linear actuators. Not only is it compact, but these small electric linear actuators also have the characteristic of precise control and high protection level. From its range of functions, our small linear actuators can be used in many different application scenarios, such as robotics, automotive, home decoration and office.

Whether lifting, pushing, pulling or adjusting, our small electric linear actuators can meet your needs and improve your product performance and user experience.

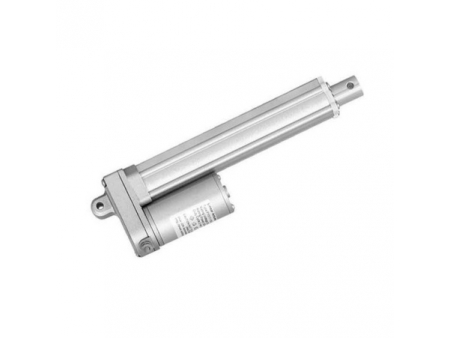

YXN016 Small Linear Actuator

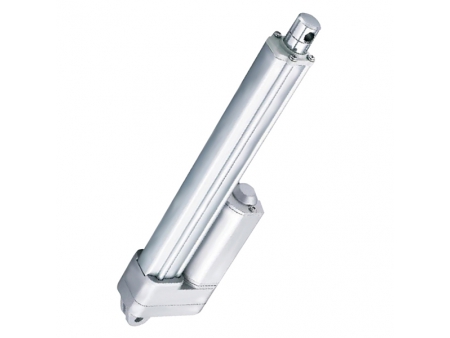

YXN017 Small Linear Actuator

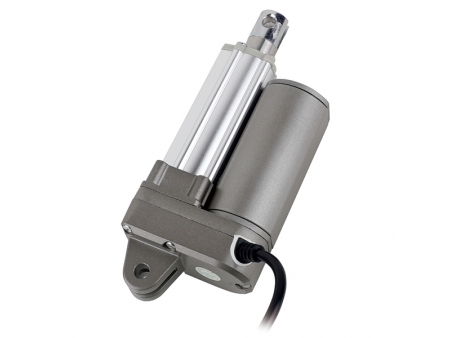

YXN019 Small Linear Actuator
YXN022 Silent Type Small Linear Actuator

YXN016 Small Linear Actuator

Specifications

Input voltage	12V/24V DC
Maximum load	1500 N
No-load speed	5-120 mm/s
Stroke	Customized
Duty cycle	10%, 2min. On/18min. Off
Environment temperature	-15℃-45℃ (Special temperatures can be customized)
IP Grade	IP43
Stroke switch	Built-in
Certification	CE, ROHS

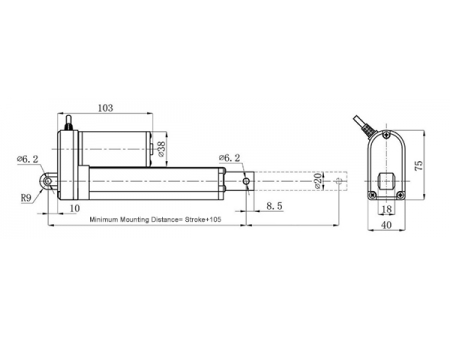

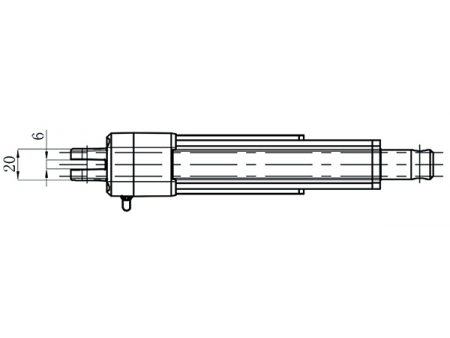

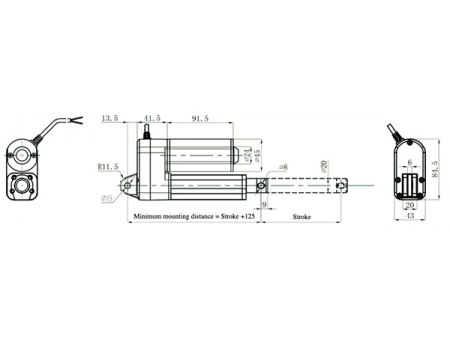

Dimensions

▴Built-in/without Hall signal

YXN017 Small Linear Actuator

Specifications

Input voltage	24V/12V DC
Maximum load	1200N
Maximum load	5-120mm/s
Stroke	Customized
Duty cycle	10%, 2min. On/18min. Off
Stroke switch	Built-in
Environment temperature	-15℃-45℃
IP grade	IP65

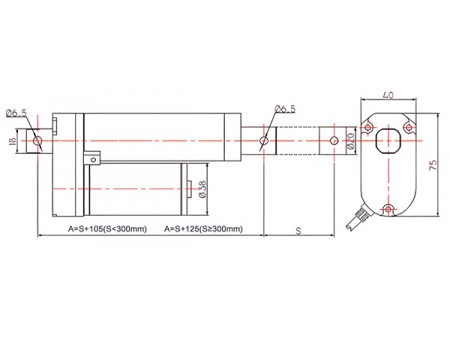

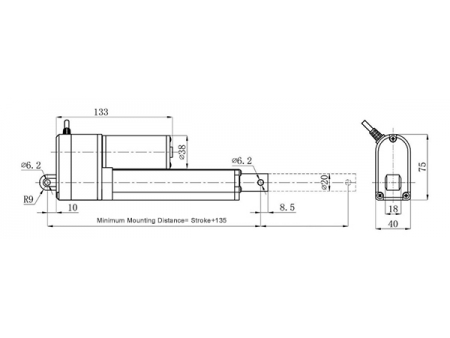

Dimensions

▴Built-in/without Hall signal
▴Built-in potentiometer

YXN019 Small Linear Actuator

Specifications

Input voltage	12V/24V DC
Maximum load	3000N
No-load speed	5-70mm/s
Stroke	Customized
Duty cycle	10%, 2min. On/18min. Off
Environment temperature	-15℃-45℃ (customized available)
IP grade	IP65
Stroke switch	Built-in
Certification	CE, ROHS

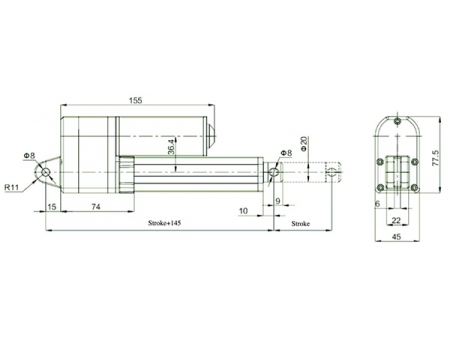

Dimensions

▴Built-in/without Hall signal
▴Built-in potentiometer

YXN022 Silent Type Small Linear Actuator

Specifications

Input voltage	12V/24V DC
Maximum load	2500N
No-Load Speed	5-20mm/s
Stroke	Customized
Duty cycle	10%, 2min. On/18min. Off
Environment temperature	-15℃-45℃ (customized available)
IP grade	IP65
Stroke switch	Built-in
Certification	CE, ROHS, SAA

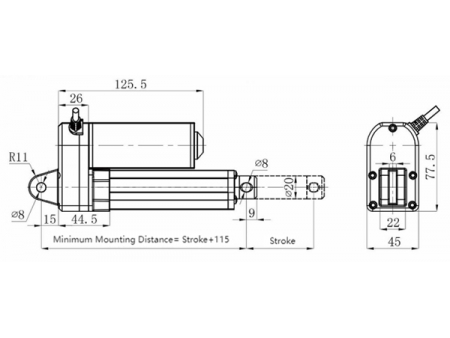

Dimensions

▴Built-in/without Hall signal
