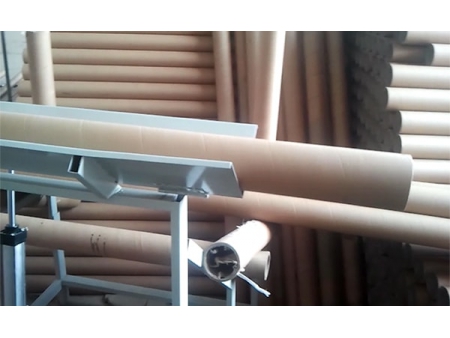

4 Head Paper Tube Making Machine, KS-300

Request a Quote

Website: http://jgcartonmachine.com/12-5-4head-paper-tube-machine/226703/index.html

Main parameter

• Tube diameter: Φ50-Φ300㎜
• Tube thickness: 2-15㎜
• Work speed: 0-15m／min (according the paper class and size of the tube speed different)
• Tube cut length: 1-5m
• Motor power: main machine 18KW cutter 0.75KW (single knives)
• Control model: inverter
• Transmission model: reducer motor and chain transmit
• Cut model: infrared control, auto track cutting
• Cut error: even speed 3 mm
• Belt: the annular canvas belt 2 pcs
• Curl tube shaft: Φ76㎜ (standard)
• Glue supply stand: spring glue supply (standard)
• Paper stand: fix model lifting stand (standard 30 ply)
• Bottom stand device: wheel style device (standard)

Characteristics

• automatic cut, fall tube and automatic supply glue
• when cutting tube, automatic change speed, and reset, disc cutter automatic cut, cut side even, and machine more steady
• inverter adjust speed control can save 30% electrical than popular electromagnetic variable -speed motor
• infrared control， paper tube length accurate
