Radiator Folded B Type Tube Mill
This tube mill is specially designed for producing folded B type radiator aluminum flat tubes.
Our tube mills can 100% replace those aluminum pipe mills from Schoeler Germany, Millmaster USA, or Japan.
The folded tubes are produced from brazing sheet coils by a multi-step roll forming process – bringing the sheet gradually into a “B” shape. Comparing to traditional HF welded flat tubes, B-tubes have certain advantages – particularly regarding strength. The folded ends of the tube sheet are brazed inside the tube, which creates a very robust bridge between the walls. This results in higher burst pressure resistance.
And thus thinner aluminum strips can be used to decrease the material cost of radiator tubes.
Furthermore, heat transferring result of radiator cores by folded B tubes is better than that of HF seam-welded tubes.
Tube rolling moulds are designed in quick-changeable cassette type. By changing this kind of cassette, other size aluminum tubes can be produced as well.
On same cassette, rollers can be changed for other size tubes also.

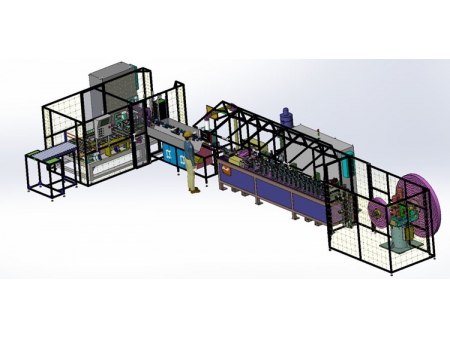

This tube mill can 100% replace those aluminum tube mills from Schoeler Germany, Millmaster USA, or Mori Japan.
- Aluminum strip reel loading by vacuum absorber loading device (optional)
- Aluminum strip decoiling by twin-head active decoiler
- Aluminum strip feeding by synchronization feeder with buffer
- Roll forming by 15 stations rollers, including online dimpling
- Cutting to length by non-stop high speed cutter
- Transmitting, with bad tube separating & collecting
- Auto tube stacking system (optional)
- Servo screw pump pasting brazing flux on internal surface before forming, programmable, real-time visual inspection, assuring pasting quality and further brazing quality
- Special roller designing and adjusting technology for various aluminum pipe forming
- Quick roller changing, only two workers and 60 minutes to finish size changing
- Ideal coordination between dimpling and cutting devices, margin length can be set freely
- Dual-station tube transmitting belt, capable for separately collecting good and bad tubes
- Special cutting device, supper high speed cutting catching the whole line speed, max. Cutting speed 300 tubes/min.
- Dimpling and cutting are matched ideally, margin length on tube end can be freely preset
- Equipped with safety barrier, protection cover, door switch and voice-light alarming
- Equipped with oil mist collecting device, recovering rate >85%
- Suitable materialPure aluminum or aluminum alloy 4343/3003/7072 or 4343/3005/7072, with cladding
- Applicable B tube size16~32mm x 1.4~2.5mm x 0.18~0.35mm
- Finished B tube outline dimension error**≤±0.05mm
- Suitable tube length200~1200mm
- Applicable aluminum strip coil sizeMax. OD:1900mm; ID 290~310mm; max. Weight 500kg
- Production speedMax. 120m/min
- Cut-to-length precision≤ ±0.5mm
- Life of cutting bladesMore than 0.2 billion cuts
- Duration for changing rollers60 minutes (cassette changing)
- Total electric powerAbout 25kVA
- Air source0.5-0.7MPa, 0.5m3/min
- Noise level≤75dB (@1.5m away from safety barrier)
- Lubricant mist collecting rateMore than 85%
- Total weightAbout 4500kg
- Whole line dimensionAbout 14.3m x 5.1m x 2.2m (including tube stacking system)

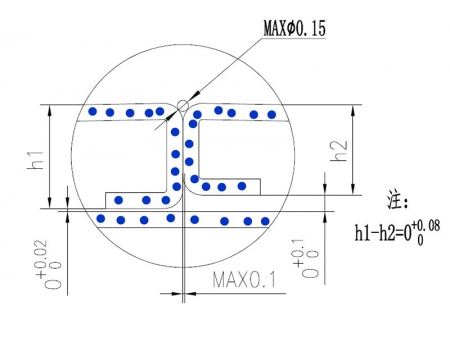

**For folded B tube quality, there are two important parameters to be promised:
Diameter of Delta area is not more than 0.15mm.
Two legs height difference is not more than 0.08mm.
