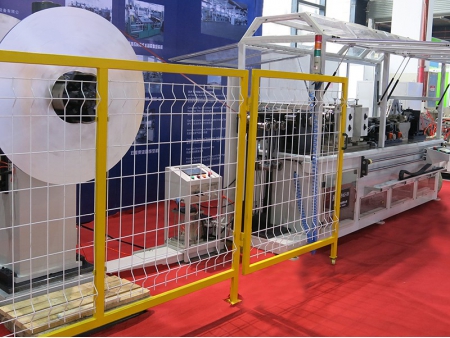

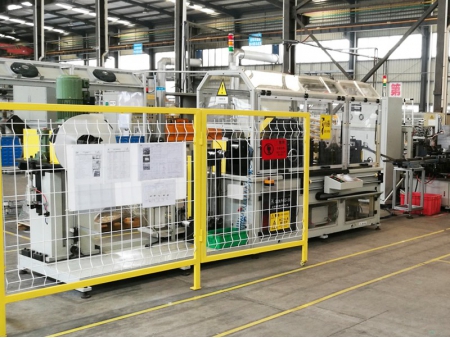

Matrix Radiator Core Builder
Request a Quote
This matrix radiator core production line is specially designed for building aluminum radiator and condenser cores. It is comprised of high speed fin rolling machine, flat tube auto loading device, fin & tube auto collocating device, and auto radiator building machine.
Main Features
- High automation machine combining fin & tube collocating and core building together
- Manually put flat tubes to tray and auto load to flat tube hopper
- Linked with fin rolling machine, auto collocating fin and flat tube
- Auto pushing collocated fin and tube to core building station
- Auto assembling side plates, ordering cores and assembling header pipes
- Big variety for various radiator / condenser cores
Technical Data
- Suitable flat tube length (core width)400-900mm
- Suitable header plate/pipe length (core height)300-600mm
- Flat tube numbers30-90
- Suitable flat tube width12, 16, 18, 20mm
- Suitable flat tube thicknesscustomized
- Flat tube auto loading system (Tube tray capacity)160 pcs /tray
- Flat tube auto loading system (Tray elevating device capacity)30 trays
- Speed of spiral screw collocating device≤1 second (one tube one fin)
- Suitable fin widthSame as width of flat tube
- Distance between fin and header plate10mm
- Core building precision Length & height± 1mm
- Core building precision Diagonal length±1.5mm
- Production speedMore than 60 cores /hour
- Core size changing speedLess than 30 minutes
- Total motor power20kW
- Air source0.6~0.8MPa
- Machine dimension (L x W x H)3600 x 1500 x 1200mm
Main Components
- Fully automatic medium-speed fin rolling machine
- Fractional-spray precious lubricating system (one upper and one lower spraying guns)
- Automatic flat tube loading device
- Full automatic fin & flat tube collocating device
- Automatic core building machine
- Automatic core wire tying machine (optional)
