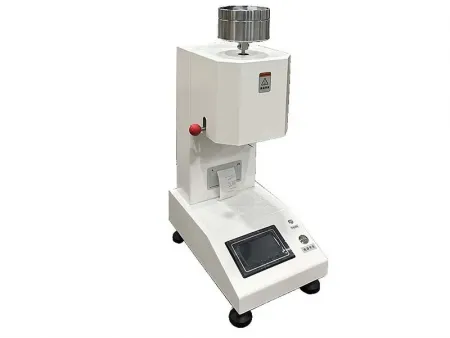

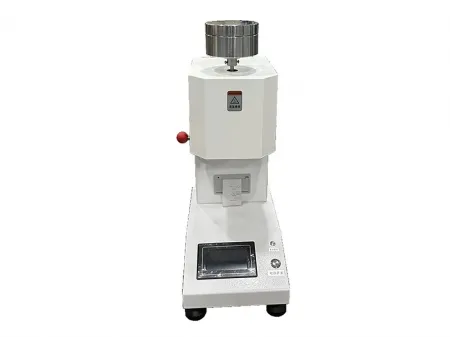

BP-8164-A Melt Flow Index Tester
Laboratory testing equipment for rapid testing of melt mass flow rate (MFR) and melt volume rate (MVR) of plastics and polymer products
- Instrument control
- Standard: ASTM-D1238, ISO-1133, GB/T3682
- Measuring methods: MFR/MVR
- Measuring scope: 1.0-100g/10min, 0.01-350cm³/10min
The melt flow index tester is designed to measure the melt flow rate and melt volume rate of various polymers in a molten state. It is suitable for testing plastics with high melting temperatures such as polycarbonate, polyphenylsulfone, and fluoropolymers, as well as low melting temperature plastics like polyethylene, polystyrene, and resins. This tester complies with GB/3682-2000 standards and is widely used in plastic manufacturers, universities, research institutions, and inspection departments. Featuring high-performance and high-precision control instruments, it uses PID regulation for constant temperature control, ensuring high sampling accuracy and fast control speeds.
Enhance your material testing with the melt flow index tester, ensuring fast, accurate, and reliable melt flow data for your polymer products.
- Measuring method
mass melt flow rate (MFR)/melt volume rate (MVR) - Measuring scope
1.0-100g/10min, 0.01-350cm³/10min - Temperature control range
100-450℃ - Temperature control accuracy
±1℃ - Temperature recovery time
<4min - Cutting method
automatic cutting or push button cutting - Timing accuracy
0.01s - Display
PID control LCD - Load options
1000g, 2160g, 3800g, 7160g, 10000g, 12500g, 21600g - Power supply
AC220V, 3.5A, single phase - Dimensions (W×D×H)
620×560×895mm - Weight
68kg
