CNC Copper Tube Bender

Request a Quote

Website: http://rollforming-line.com/14-14-cnc-copper-tube-bender.html

CNC Copper Tube Bender

Main Features

The tube bender frame and body adopt keel structure to ensure high intensity, rigidity, and stability.

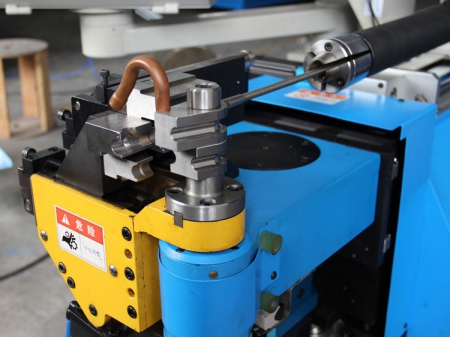

The bending head is designed in an integral box structure and the bending arm adopts a precise teeth chain as transmission, offering high precision.
Special clamping structure ensures enough clamping force, not to damage workpiece.
The core rod is of universal joint type, exempting from lubrication.
Machine has self-testing function for detecting original of X and Z axis and dead point alarming.
8” LCD displayer, integrative antifouling keyboard
CNC controller can save 400 units programs for 400 products, G-M code, with RS232 interface
Program has auto-calibration function for bending angle and length, auto counting, auto alarming, power-off memory.

Above CNC copper tube bending machine is of single bending die design. We have 2-layer die and 3-layer die models as well.

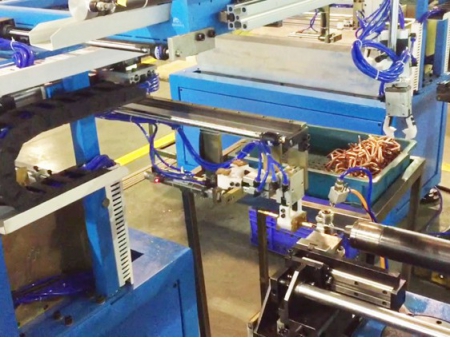

We can provide automatic loading device and manipulator to achieve full automatic unattended operation.
We can also integrate collar hole punching function on the tube bender.

Technical Data
