Alumina Grinding Balls / Ceramic Balls Manufacturer

Alumina Grinding Balls / Ceramic Balls

Request a Quote

View All: http://manufacturervalve.com/4-ball-valves.html

Description

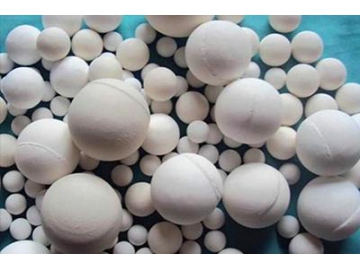

The appearance of grinding ball is a white ball, with 0.5-120mm diameter and 70%-99% alumina content, which can be produced according to customers’ requirement.

Application
Grinding balls can be used as grinding medium for ball grinder mills of quartz sand, alumina powder, zirconium silicate powder, clay, kaolin and other materials. It is widely used in the industries of ceramics, mining, cement, paint, chemical engineering, pharmaceuticals, coatings, refractories and so on.

Parameters (alumina content can be customization)

Performance Index	75 Series	92 Series	95 Series
AL₂O₃ (%)	≥75	≥92	≥95
Moh's Hardness (%)	7.5	9	9
Moisture Content	≤0.02	≤0.02	≤0.02
Bulk Density (g/cm³)	≥3.0	≥3.60	≥3.68
Wearing Loss (‰)	≤0.20	≤0.12	≤0.1
Color	White	White	White

Chemical component of 92 series

Component	AL₂O₃	MgO＋CaO＋Na₂O	SiO₂	Others
Wt%	92.3%	3.2%	4.3%	0.2%

Physical nature of 92 series

Density	Bulk weight	Moh's Hardness	Vickers hardness	waster absorption	Color
3.7kg/dm³	2.2kg/L	9	>1500kg/mm²	< 0.01%	White

Parts of balls’ size in 92 series (size can be customization)

Type	Grain size(φmm)	Type	Grain size(φmm)	Type	Grain size(φmm)
AL-1	1.0±0.2	AL-8	8.0±0.4	AL-30	30.0±0.5
AL-2	2.0±0.3	AL-10	10.0±0.4	AL-40	40.0±1.0
AL-3	3.0±0.3	AL-13	13.0±0.4	AL-45	45.0±1.0
AL-4	4.0±0.3	AL-15	15.0±0.4	AL-50	50.0±1.0
AL-5	5.0±0.3	AL-20	20.0±0.5	AL-60	60.0±2.0
AL-6	6.0±0.3	AL-25	25.0±0.5	AL-70	70.0±2.0

Advantages

The main component of alumina grinding ball is aluminum oxide, which has the feature of high purity, high strength, high hardness, high whiteness, low wear and has few effect on quality of grinding materials.
The ceramic ball adopts rolling and isostatic forming, which has large density. It can improve grinding efficiency greatly, reduce grinding time and increase effective volume in order to increase the amount of grinding materials added.
High aluminum grinding ball has good wear resistance, which can extend the service life of grinder effectively.
