Tablet & Capsule Inspection Machine
Drug inspection machine is a newly developed product in combination with the requirement of domestic pharmaceutical industry and the foreign advanced technology. Also, it is an optimal device for inspection of hard capsule, soft capsule, tablets and pills, featuring no pollution, no static electricity, no corner, simple operation, low labor strength and high working efficiency in compliance with the GMP standard.

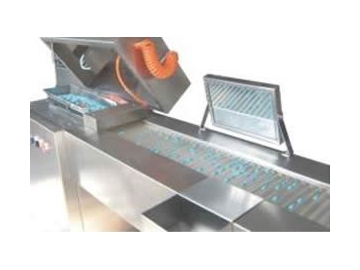

This drug inspection machine is entirely composed of stainless steel. By adoption of feeder, our product can evenly arrange the capsules and tablets on the delivering roller. Then, these drugs can turn over and also move forward on the roller. After the static elimination and manual inspection, substandard products can be taken out in use of pneumatic principle. All the drugs are entirely in no contact with the operators.
Features- The tablet and capsule inspection is designed to be both practical and easy to use, significantly reducing the amount of work needed and enhancing overall efficiency.
- The speeds for checking capsules and tablets can be adjusted separately, ensuring a thorough inspection process that covers everything.

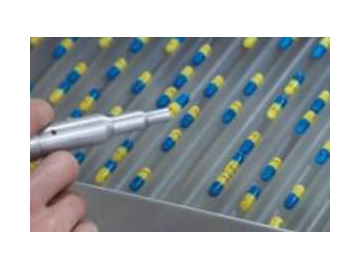

- There's a handy hand-held vacuum nozzle for operators to easily pick out any medicines that don't meet standards, reducing the need to touch the medicine directly.

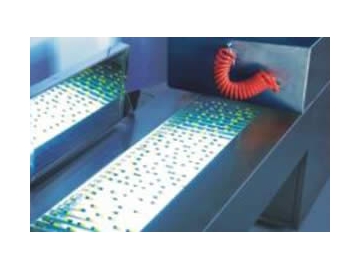

- The inspection area is made of clear, FDA-approved plexiglass to make it easy to see the whole process, especially when you're checking hard or soft capsules with the help of the bottom light. Plus, there's an option for a stainless steel inspection area that meets GMP standards if that's what you need.
| Weight | 180kg |
| Power Supply | 220V 50HZ or 110V, 60Hz |
| Motor Power | 0.6kW |
| Overall Dimensions (L×W×H) | 1400×650×1250mm |
| Applications | Capsule (00#-4#) Tablet (min. diameter more than 3mm) Pills Soft capsules |
| Capacity | Max.120000 pcs/hour or about 50kgs/hour |
Jiangnan Enterprise is a professional drug inspection machine manufacturer in China. The wide range of products we offer includes AL-PVC/AL-AL blister packaging machine, high speed blister packaging machine, automatic cartoning machine, softgel encapsulation machine, and more.
