Power supply of corona surface treatment system

The CW1000 series corona generator utilizes a resonant switch, along with reliable integrated circuits and power devices. It efficiently converts grid electricity into high-frequency, high-voltage AC using a bridge inverter circuit comprising power tubes. This high-voltage AC is then applied to the surface of the treated material through dedicated discharge electrodes. When polymers and other treated objects are subjected to discharge, their surfaces generate polar groups. This results in a strong ion impact, which roughens the material's surface, effectively enhancing the penetration and adhesion of ink and glue.

Main Models

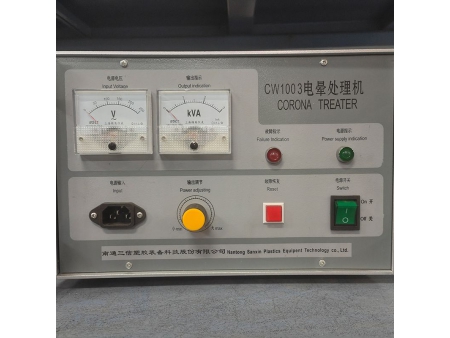

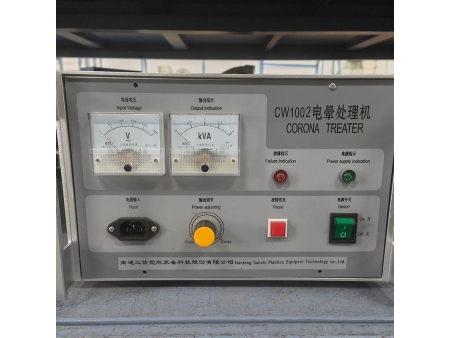

Model	CW1001H2	CW1002	CW1003
Input Voltage, Frequency	Single-phase 220V ( 10%~-15% ), 50Hz	Single-phase 220V ( 10%~-15% ), 50Hz	Single-phase 220V ( 10%~-15% ), 50Hz
Output Voltage	AC 10kV-AC 15kV	AC 10KV-AC 15KV	AC 10KV-AC 15KV
Operating Frequency	10kHz-15kHz	10kHz-15kHz	10kHz-15kHz
System Efficiency	>95%	>95%	>95%
Operating Temperature	-10℃~ 40℃	-10℃~ 40℃	-10℃~ 40℃
Operating Humidity	20%~93%, no condensation	20%~93%, no condensation	20%~93%, no condensation

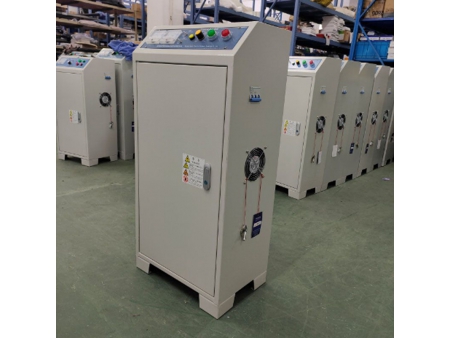

Generator Dimensions (mm)	112400280	320200400	320200400

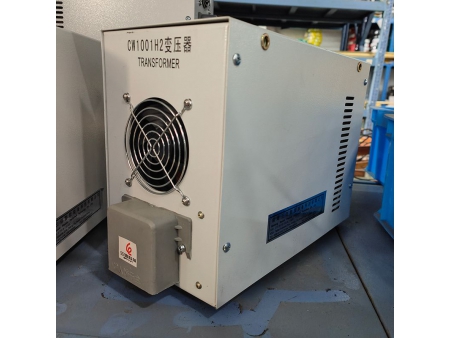

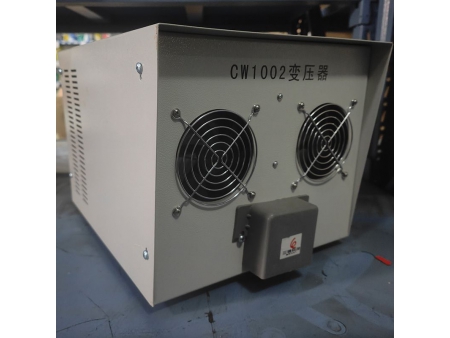

Transformer Dimensions (mm)	160310245	300270250	320200350
Weight (without discharge station)	11kg	15kg	18kg

Model	CW1001H2
Input Voltage, Frequency	Single-phase 220V ( 10%~-15% ), 50Hz
Output Voltage	AC 10kV-AC 15kV
Operating Frequency	10kHz-15kHz
System Efficiency	>95%
Operating Temperature	-10℃~ 40℃
Operating Humidity	20%~93%, no condensation
Generator Dimensions (mm)	112400280
Transformer Dimensions (mm)	160310245
Weight (without discharge station)	11kg

Model	CW1002
Input Voltage, Frequency	Single-phase 220V ( 10%~-15% ), 50Hz
Output Voltage	AC 10KV-AC 15KV
Operating Frequency	10kHz-15kHz
System Efficiency	>95%
Operating Temperature	-10℃~ 40℃
Operating Humidity	20%~93%, no condensation
Generator Dimensions (mm)	320200400
Transformer Dimensions (mm)	300270250
Weight (without discharge station)	15kg

Model	CW1003
Input Voltage, Frequency	Single-phase 220V ( 10%~-15% ), 50Hz
Output Voltage	AC 10KV-AC 15KV
Operating Frequency	10kHz-15kHz
System Efficiency	>95%
Operating Temperature	-10℃~ 40℃
Operating Humidity	20%~93%, no condensation
Generator Dimensions (mm)	320200400
Transformer Dimensions (mm)	320200350
Weight (without discharge station)	18kg

Main Features

High Power Density for Surface Treatment
Under the same film and environmental conditions, our corona generator yields a dielectric constant (Dyne) 3-8 times higher than a traditional one. Or for the same Dyne consumption, our corona generator needs only half of the power.

High Power Spectrum Frequency
Our corona generator operates at a power spectrum frequency of 8-16kHz, and allows a uniform and dense distribution of discharge sparks during corona treatment. This leads to a smooth and bright surface of the plastic film without affecting its appearance and strength.

High Efficiency
Utilizing an advanced resonant switch, our corona generator achieves an energy conversion efficiency of up to 95%, resulting in minimal self-consumption.

Constant Current Operation Mode
At the early stage of design, our corona generator has fully considered the uneven processing effect caused by the fluctuation of the discharge roller and the non-uniformity of the treated plastic film. Therefore, our corona generator employs a constant current operation mode, which maintains a stable high-frequency current flux on the film surface even when the discharge roller fluctuates or the film surface is not uniform. This ensures uniform Dyne on the film surface and significantly improves the printing quality and composite strength of the film.

Full Electronic Protection
Our corona generator is equipped with sound and visual alarm for output short-circuit, open-circuit and overload protection.
