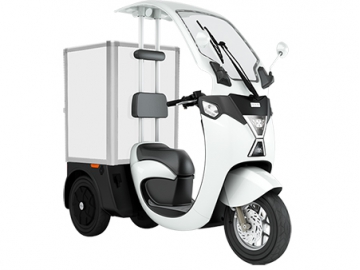

3 Wheel Electric Cargo Scooter
Request a Quote
The OAK series 3 wheel electric cargo scooter is smaller than the Bange series, with an overall size of 660×720×950mm and volume of 450L. It is often used for takeout delivery, grocery delivery, logistics, express and newspaper delivery, and more.
The 3 wheel electric cargo scooter is both economical and durable with a carbon steel bearing structure and honeycomb panel. RAP SEV can also give the 3 wheeled electric cargo scooter an aluminum alloy bearing structure for a lighter weight and higher energy saving performance based on customer requirements.
- Container volume: 450L
- Load capacity: 50kg (cargo) + 85kg (driver)
- Drive distance at half load: 120km
- Power: Lithium battery
- Charge time: 6-8 hours
Parameter
Performance
- Body size (L*W*H)
- 2100*750*1850
- Curb weight (no battery)
- 160kg
- Cargo weight
- 50kg
- Total mass
- 335kg
- Swing angle
- 18°
- Max. gradability
- 20%
- Range, 30Km/h, unload
- 120km
- Min. ground clearance (no load)
- 150mm
Battery
- Battery type
- LiFePO4
- Battery weight
- 50kg
- Voltage
- 51.2V
- Nominal battery voltage
- 95ah
- Nominal battery energy
- 4.864kwh
- Max. Charging time
- 8h
Electric machinery
- Motor type
- DC permanent magnet motor
- Min. Steering radius
- 2.5m
- Motor power
- 2*2kW
- Peak power
- 2*4kW
- Rated torque
- 2*70Nm
- Peak torque
- 2*130Nm
- Rated RPM
- 300rpm
Container
- Frame Material
- Honeycomb pane/EPP
- Body size (L*W*H)
- 660*720*950mm
- Volume
- 0.45m3
- Selected
- Car refrigerator
Safety
- Wheelbase
- 1545mm
- Tread(rear)
- 625mm
- No-load axle load distribution (F/R)
- 86/199kg
- Full load axle load distribution (F/R)
- 101/234kg
- Driven type
- Rear-wheel drive
- Tire (F)
- 110/90-12
- Tire (R)
- 110/90-12
- Air pressure
- 250kpa
Characteristic
- Mobility
- The OAK series 3 wheel electric cargo scooter features an excellent flexibility for driving and parking, because it has a width of only 775mm, which is half that of an ordinary sedan. Due to its small size, the 3 wheel electric scooter easily moves through narrow streets in older parts of cities, as well as downtown tight spaces.
- Flexibility
- The OAK series 3 wheel electric cargo scooter features a variety of applications, due to its modular chassis structural design: the rear half of the scooter can easily be combined with a container, flatbed, and other structures.
- Capacity
- The maximum volume of the OAK series 3 wheel electric cargo scooter is 450L.
- The maximum capacity of OAK series 3 wheel electric cargo scooter is 100kg, which is ideal for most small product deliveries.
- Battery
- The 3 wheel electric cargo scooter uses a lithium phosphate battery with a service life of 2,000 charges, and can be charged at will as there is no memory effect.
- This electric three wheeler is an excellent solutions for delivery personnel as it requires only 6 to 8 hours for a full charge, and a full charge enables a mileage of 120km (at a load of 50kg).
- The lithium phosphate battery is a stable and safe battery, and features an exceptionally low risk of damage to ensure long term usage.
- Power
- The OAK series 3 wheel electric cargo scooter meets EEC requirements, with no more than 45km/h in the initial speed. This not only meets urban speed needs, but also reduces unnecessary energy consumption.
- The driving motor is an DC permanent magnet motor that offers an advanced, reliable power.
- Stability
- The 3 wheel electric cargo scooter frame is made of a high strength Q235 carbon steel and is auto-welded using a robot station. This ensures the stability and durability of the three wheeler for long term driving.
- Safety
- The cab is controlled by the front wheel of the scooter, and it freely tils within 18 degrees to effectively prevent roll overs when rounding curves. This ensures both cargo and driver safety, and provides the same fun driving experience a two wheeled scooter does.
- The OAK series 3 wheel electric cargo scooter uses hourglass super-bright LED headlights with the same brightness and precision as automotive headlights, thus ensuring driving safety during both daylight and at night.
- Comfort
- The seat in the cab is soft and comfortable because it is made of PU and ergonomically designed.
- It is easy to find a comfortable position on the seat, because it features a headrest on the back, and is freely adjustable and attached using 4 clips.
- The cab designed load bearing capacity is up to 85kg, which suits most driver body types.
- Intelligence
- The OAK series 3 wheel electric cargo scooter uses a 7 inch TFT liquid crystal display that is fully designed according to automobile standards, with a full range of functions and a fully intuitive information display.
- The scooter can be connected to an app on your cell phone to display a variety of information, including the scooter status, real time location, fault diagnosis, light control, theft prevention, and alarm.
- This scooter features audio and visual capabilities simply by connecting cell phone blue tooth services.
Gallery
- Right handlebar
- Left handlebar
- Rock and parking brake handle
- Start keyhole
- Driver seat
- Chinese Calligraphy Safe Journey
- Display screen –reversing camera display
- Display screen –neutral gear
- Display screen –forward gear
- Hourglass headlights
- Connecting shaft
- Glove compartment
- Driving pedal
- Window wiper
- Power port
- Incline view
