Cold Press

Request a Quote

View All: http://woodmachines-en.com/1-11-5-1-cold-press.html

//Woodworking Machinery

Wood pressing machine for laminating and assembling wood panels together for making tables, doors and other wood furniture

Woodworking Machinery

Cylinder diameter125mm
Cylinder stroke1300mm
Machine dimensions (L×W×H)3600×1400×2550mm
Machine weight2600kg

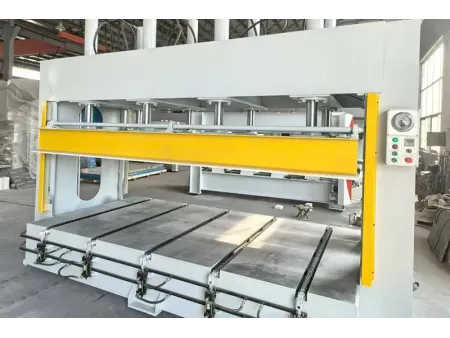

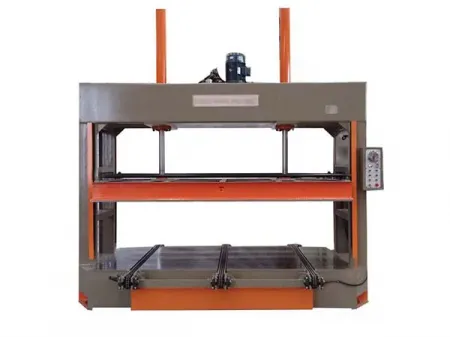

The cold press is used to laminate and assemble wood panels under pressure at room temperature. It is ideal for joining multiple boards to create large, flat surfaces such as tabletops, doors, cabinet panels, and furniture frames. By applying uniform pressure during curing, the wood pressing machine ensures tight bonding at the joints, resulting in improved structural strength and long-term stability.

Specifications

Model HF
Working layer 1 layer
Cylinder diameter 125mm
Cylinder stroke 1300mm
Cylinder quantity 2pcs
Pressure pump motor power 4kW
Platen size (L×W) 3200×1400mm
Rated voltage 380V
Frequency 50Hz
Max. working pressure 50T
Machine dimensions (L×W×H) 3600×1400×2550mm
Machine weight 2600kg

Structure

The cold press consists of a heavy-duty frame, upper and lower worktables, lift table, upper beam, hydraulic station, piston-type oil cylinders, and guiding elements, all designed for steady, uniform pressing during assembly.
