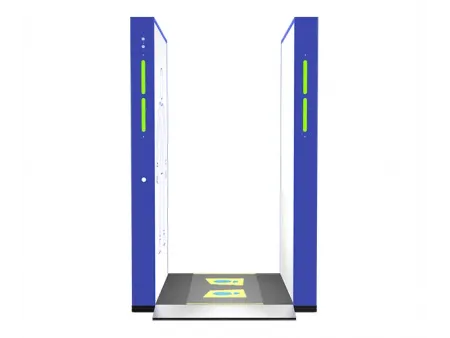

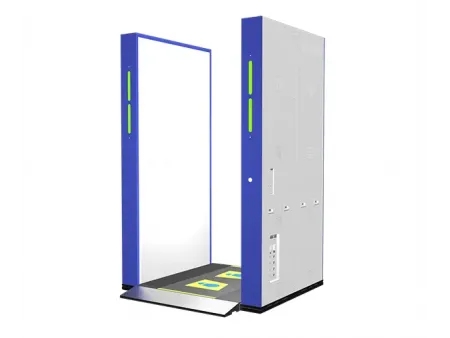

Human Body Security Scanner (without Top)
HBS-7803 Millimeter Wave Scanners
Millimeter wave body scanner utilizing millimeter waves for detecting dangerous items concealed underneath clothing
HBS-7803 human body security scanner uses Microcreative independently developed 80GHz millimeter wave chips together with 2D MIMO scanning technology to image the human body. Combining Al technology, this full body scanner can identify the suspicious objects hidden under the clothes automatically, whether metal or non-metal, realizing the non-contact security screening for human body. Thanks to the 2D MIMO scanning technology, the human body security scanner has faster scanning speed, higher resolution and detection rate, and its unique barrier-free pass design offers a better feeling for the inspected person.
HBS-7803 millimeter wave security scanner can also be custom configured by adding the foot metal detection module, which can detect the metal items hidden in the shoes effectively, while extending the detection range to foot area. In addition, this human body security scanner holds the certification from Civil Aviation Administration of China (CAAC) A3 level, which is the highest level in aviation security screening equipment.
| Item | Specification | Remarks |
| Operating Frequency | 71–81 GHz | |
| Detection Height | 0.1–2.2 m | Minimum–maximum |
| Detection Width | 1 m | |
| Line Resolution | 1 mm | |
| Scan Time | 0.29s | |
| Inspection Time | 3.2 s | |
| Noise Level | ≤55 dB | Between two side panels |
| External Dimensions | 2375 × 1208 × 1498 mm | Height × depth × width |
| Passage Width | 1120 mm | Accessories not included |
| Operating Temperature | 0°C–40°C | Temperature range |
| Operating Humidity | ≤80% | Relative humidity range |
| Operating Voltage | 200–240 V AC (±10%) | Proper grounding required |
| Product Weight | 585 kg |
- mmWave Security Scanner at Ürümqi Tianshan International Airport
- mmWave Security Scanner at Zhuhai Jinwan Airport
- mmWave Security Scanner at Beijing Capital International Airport
- mmWave Security Scanner at Nnamdi Azikiwe International Airport
These millimeter wave body scanners are widely used in places where people need to move smoothly but security still has to be strict, such as airports, metro stations, railway hubs, customs checkpoints, and other sensitive areas. They can highlight automatically any hidden metal or non-metal items under clothing, so the security team can see what needs attention right away and keep people moving without causing unnecessary delays.
- Large Events
- Metro Stations
- Airports
- Customs & Border Control
- Hospitals
- Rail Transit Hubs
- Special Venues
- Firearms
- Knives
- Liquids
- Powders
- Ceramic knives
- Lighters
- Gasoline
- Cigarettes
- Ammunition
- Fast Scanning
Uses a 2D MIMO array that supports scan times as short as 0.1 seconds with 2 mm resolution. - High Precision
Provides a detailed 2 mm × 2 mm imaging resolution for clearer identification of concealed items. - Low Maintenance
The electronic scanning design has no moving mechanical parts and requires no calibration. - Open Walk-Through Layout
A 1.12 m-wide passage allows users to walk through comfortably without restrictive structures. - Improved User Experience
People can keep their arms resting naturally at their sides during the check, so the whole process feels easier and more comfortable. - Optional Add-Ons
Foot metal detection can be added if it is necessary.
- Metal Foot Scanner
- Active Millimeter-Wave Transceiver Array
- Display module
- ISO 9001
- ISO26262
- HBS-7803D - CAAC Security Inspection Equipment License – A3 Level
