Linear Module, Series KNK4006
Request a Quote
- Rail width: 40mm
- Optional travel: 100mm-3800mm
- Straightness/Curvature: ≤0.03/300mm
- Max load of single slider: 10KG
- Applicable motor: stepper 57, servo 400W
- Repeat accuracy: ≤0.1mm
- Travel: 75m
- Synchronous belt specification: Steel ribbon/rubber fiber band HTD 3M, W15mm
- Number of synchronous belt teeth: 25

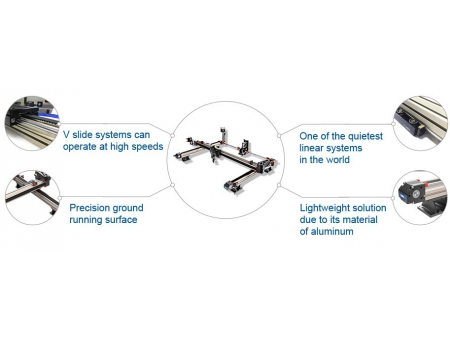

- V slide systems can operate at high speeds
- Precision ground running surface
- One of the quietest linear systems in the world
- Lightweight solution due to its material of aluminum
- Adopting modular design, KNK4006 linear module can help the engineers of automation machinery and electronic control to construct multi-axis working device. The effective travel of linear module can be customized according to customers’ requirements.
- This linear module is a lightweight solution due to its material of aluminum. It is featuring lightweight, small inertia and fast response of speed change. Besides that, it can match with stepping, servo and other motors.
- This linear equipment is mute while working in a high speed because of its closed self-lubricating system that can reduce the rolling friction coefficient by forming oil film on the guide rod.
- The design of these series linear modules is careful and precision. The rail and beam are integrated for easy installation. The mounting hole on the sides and bottom can help the fixation of drag chains, sensors and fixing bases as well as connecting plates and other accessories. The clearance of sliding block and guide rail can reach zero. Moreover, the linear module is equipped with tension adjustment device of synchronous belt.
