Overhead Crane for Power Plants Manufacturer

Overhead Crane for Power Plants

Request a Quote

View All: http://zgtostacrane.com/2-11-overhead-crane-for-power-plants.html

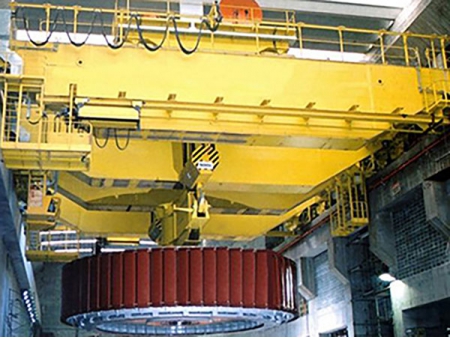

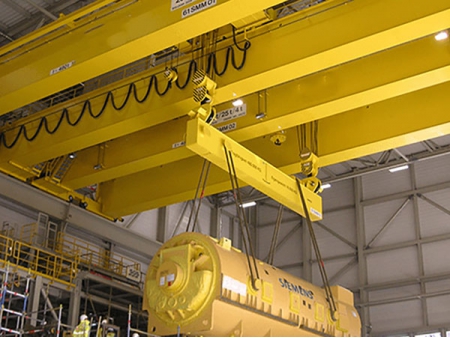

Overhead cranes for power plants are primarily used to lift and assemble stators and rotors. These cranes feature a lightweight design, low energy consumption, and reduced maintenance requirements. Typically, Euro-type double girder overhead cranes are employed in power plants for handling electrical equipment and other materials.

Specification

Capacity	5-800t
Span	7.5-45m
Lifting height	6~30m
Work class	A5-A8
Power supply	380V, 50Hz, 3-phase or customized
Control method	Pendant control, remote control, cabinet control
Main electric parts	Schneider/ABB
Motor	ABB/Siemens
IP rating	IP54, IP55, IP65
Working temperature	-20~ 60 ºC

Advantages

Electrical safety control system
Appearance paint: To prevent corrosion during the manufacturing process, the plates undergo pretreatment through sandblasting to remove rust.
Safety protection system: Main and auxiliary lifting mechanism of the power plant crane are both equipped with overload limiter.
High Performance: Frequency conversion technology is adopted to reduce operating load and enable high-speed crane travel under light loads. With a 1:10 speed ratio, the crane ensures smooth operation and minimizes impact on the workshop structure. Anti-sway technology is also implemented to achieve precise positioning.

Application

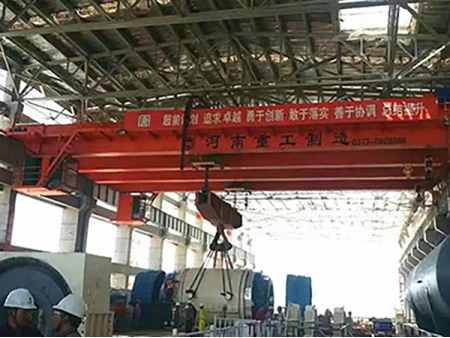

Power plant overhead crane is usually installed in the main plant of the power plant, which is used for generator set installation and maintenance, electrical equipment and other items lifting and handling.
