Roller Conveyor
Request a Quote

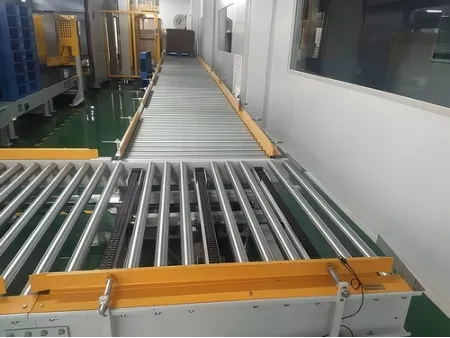

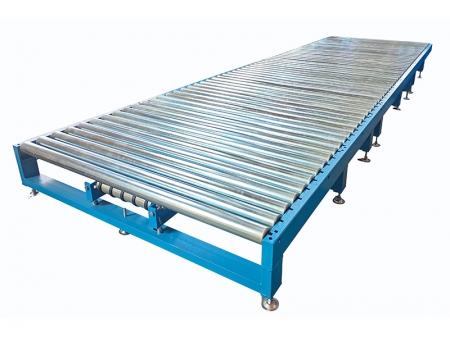

Roller conveyor system for transporting carton boxes, containers, trays and various industrial products
The roller conveyor offers high throughput, fast conveying speed and smooth operation, and can handle multiple product types on the same line with sorting and diverting capability. Roller conveyors are easy to connect and combine with each other, and can be integrated with multiple roller lines and other conveying equipment or special machines to form complex logistics conveying systems.
Specifications
| Conveyor length | 200 mm and above (customizable) |
| Width | 100–2000 mm (roller width, customizable) |
| Load capacity per meter | 5–3000 kg (customizable, depending on roller design) |
| Speed control and range | Fixed speed or inverter-controlled, 0–40 m/min (customizable) |
| Roller material | Galvanized carbon steel / stainless steel |
| Roller diameter | 60 mm (customizable) |
| Frame material | Aluminium alloy / carbon steel / SUS304 stainless steel |
| Motor power | 0.75 kW (customizable) |
