HZE MINING ENGINEERING

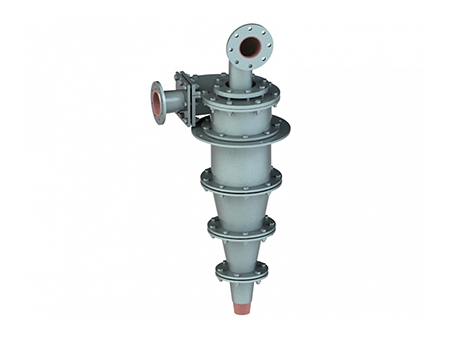

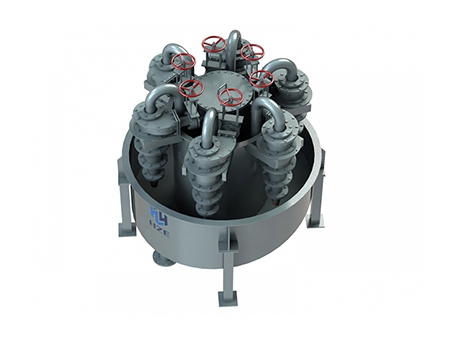

Hydrocyclone is also called a hydraulic cyclone. Hydrocyclones can work together as a united set.

Slurry enters the cone through the feed pipe and moves in cicumnutation there. Influenced by the centrifugal force, coarse particles or paticles of large density in the slurry enter the outskirts of the cycle current and are discharged from the underflow discharge at the bottom. Fine particles, less influenced by the centrifugal force, move upwards and are discharged from the overflow pipe. A world-class mining machine, FX hydrocyclone is a newly-invented cyclone of high efficiency, equipped with adjustable feed inlet and underflow discharge. We offer hydrocyclones of three different cone angles: 10°,15° and 20°.


Features

Square-shape pipes are more suitable for feeding, enabling the slurry to get closer to the interior wall of the cyclone. It has smaller resistance and reduces abrasion to the feed box.
The adjustable cuniform feed inlet makes it possible for customers to adjust the size of cyclone inlet quickly, providing better screening effect.

Application

Hydrocyclone is a commonly used mining machine, used extensively in mineral processing, construction materials, silicate and chemical industry. In mineral processing plants of small, medium and large scale, hydrocyclones are generally used to screen, concentrate and dewater mineral ores such as gold, silver, bronze, lead, zinc, nickel, manganese, iron and molybdenum, and also rock, granite, barite, quartz, graphite, feldspar and fluorite.

Technical Parameters
Model Capacity (m³/h) Screening Size (μm) Overflow Diameter (mm) Underflow Diameter (mm) Feeding Pressure (MPa)
FX-150
10-23 25-74 30-50 8-22 0.060-0.15
FX-200
17-38 28-80 40-65 16-32 0.060-0.15
FX-250
24-53 30-82 65-100 16-40 0.060-0.15
FX-300
40-100 36-90 65-120 20-40 0.060-0.15
FX-350
56-118 40-100 80-120 30-70 0.060-0.15
FX-400
74-157 42-105 90-135 30-70 0.060-0.15
FX-450
90-192 44-110 100-150 30-70 0.060-0.15
FX-500
128-300 50-115 130-220 35-100 0.060-0.15
FX-550
155-368 52-120 140-240 35-100 0.060-0.15
FX-610
200-468 57-125 160-260 65-110 0.060-0.15
FX-660
237-524 60-130 180-280 80-150 0.060-0.15
