HYPERBARIC OXYGEN THERAPY (HBOT)
Hyperbaric chamber for providing pure oxygen at pressure up to 1.90ATA for two-person therapy
- Maximum allowable working pressure (MAWP)90kPa (1.9ATA)
- Capacity2 persons

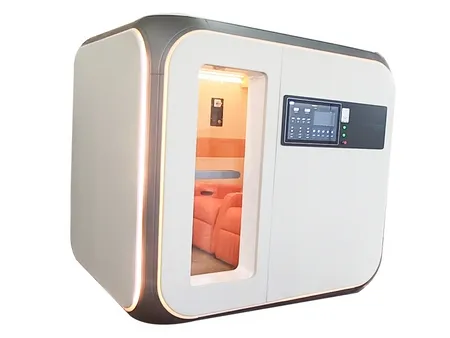

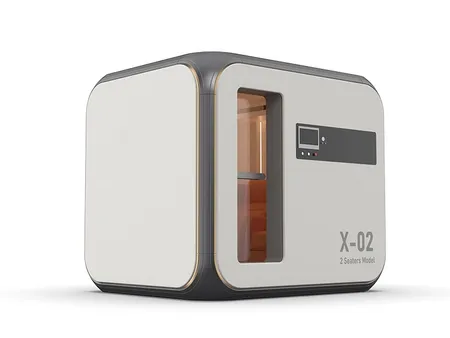

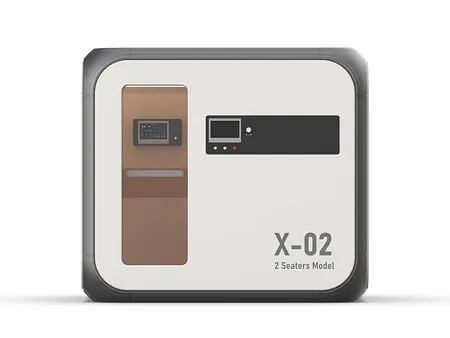

Dual-Place Moderate Hyperbaric Oxygen Chamber
Request a Quote
Dual-place moderate hyperbaric oxygen chambers support mid-pressure therapy for two users simultaneously, with pressure settings ranging from 1.1 to 1.9 ATA. Each therapy zone operates independently, using separate oxygen supply lines and adjustable pressure controls to deliver personalized care without cross-interference. This setup makes it possible to address conditions such as post-surgical recovery, neurological damage, and carbon monoxide poisoning with greater flexibility and efficiency.
Built-in safety features include dual oxygen concentration alarms and compartmentalized emergency pressure release valves. These features help reduce operational risk and allow for use in community clinics, rehabilitation facilities, and supervised home environments. Dual-place moderate HBOT chambers also enhance user comfort in emotionally sensitive cases, such as sessions involving children, older adults, or patients in need of companion support.
Dual-place moderate hyperbaric oxygen chambers also help lower treatment costs by serving two users in a single session. Optional upgrades, including separate audiovisual systems and customizable pressure programs, allow clinics to align treatment delivery with individual user needs while improving operational efficiency.
Specifications
| Chamber dimensions (L×W×H) | 3050×2420×2320mm |
| Chamber gross weight | 2ton |
| Apparatus cabinet gross weight | 400kg |
| Maximum allowable working pressure (MAWP) | 90kPa (1.9ATA) |
| Material | Aluminum alloy |
| Pressure solutions | 4 sets |
| Treatment time | 45min to 90min for your choice |
| Oxygen concentrator flow rate | 10L/min |
| Internal oxygen concentration rate | ≤23% |
| Oxygen concentration rate (oxygen generator) | 93%±3% |
| Location of PLC control | Inside and outside |
| Emergency stop/pressure relief valve | Inside and outside |
| Air conditioner | Equipped |
| Intercom | Equipped |
| Music player | Equipped |
| Chair type | Electric recliner sofa |
